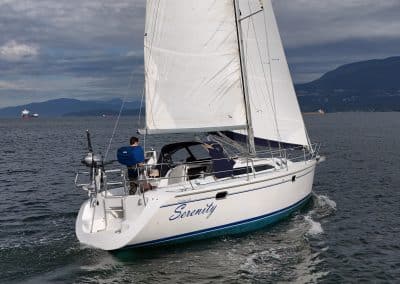

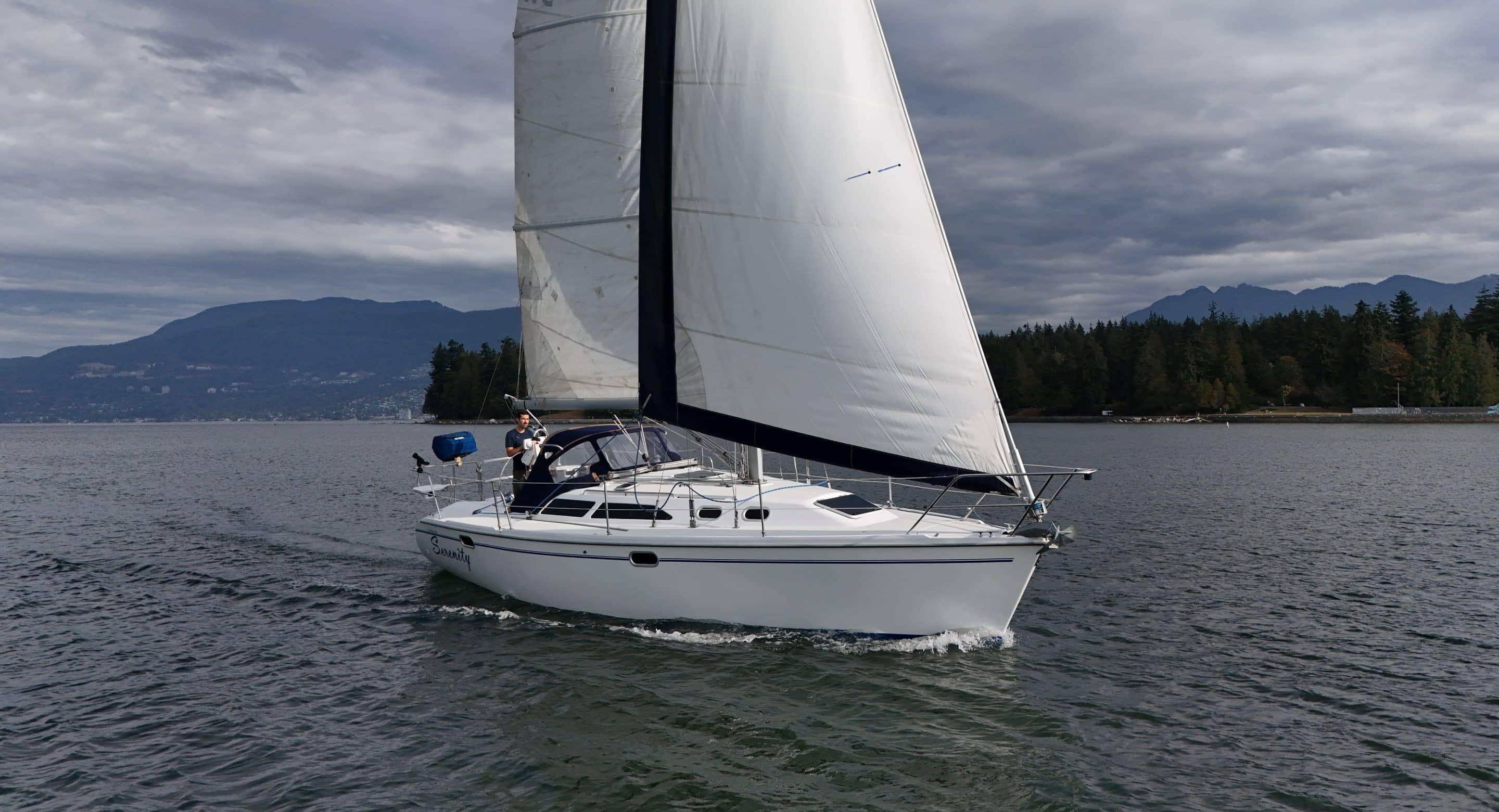

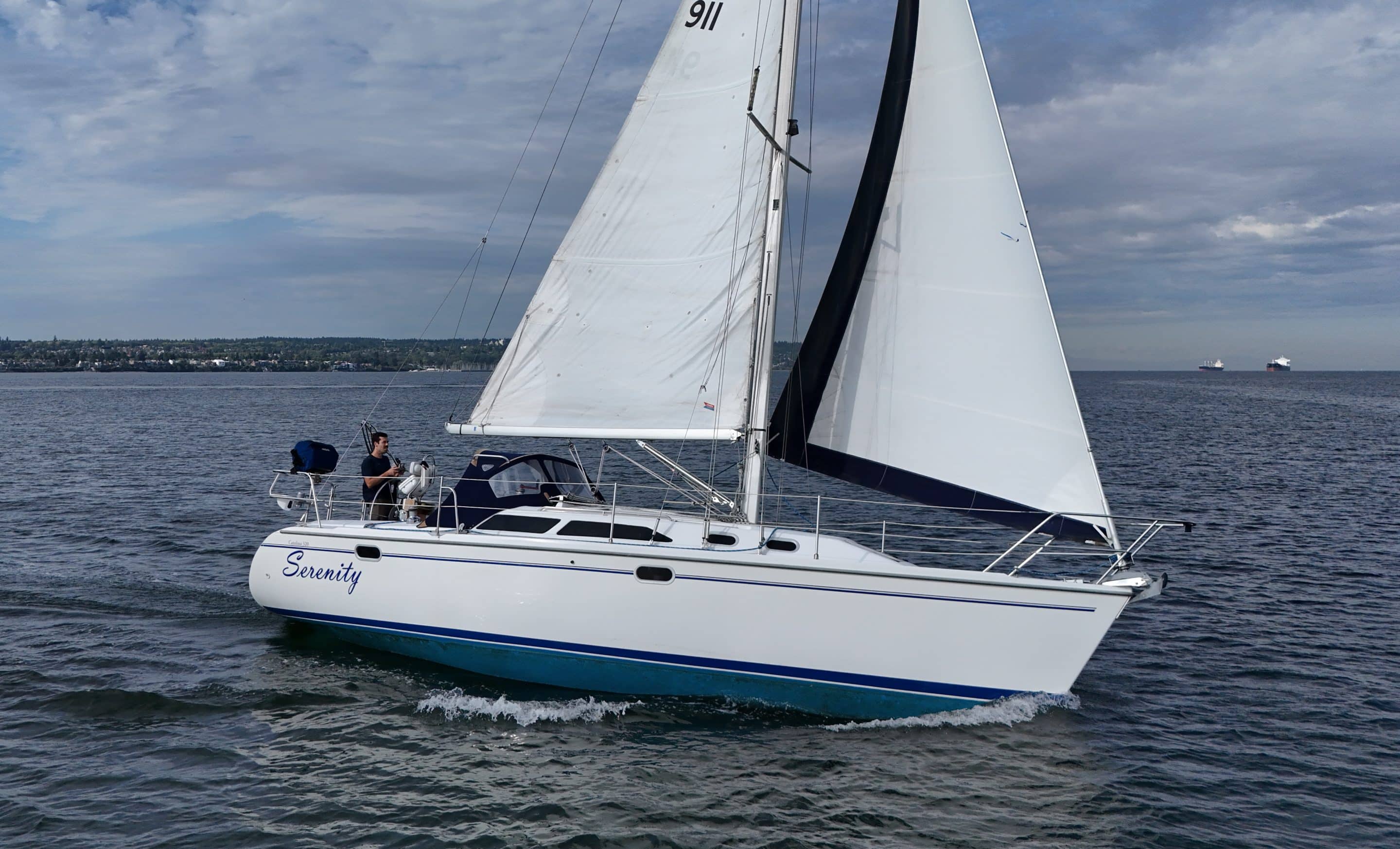

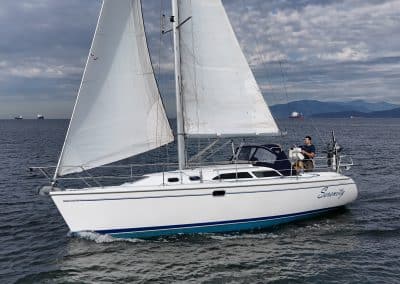

2002 Catalina 320

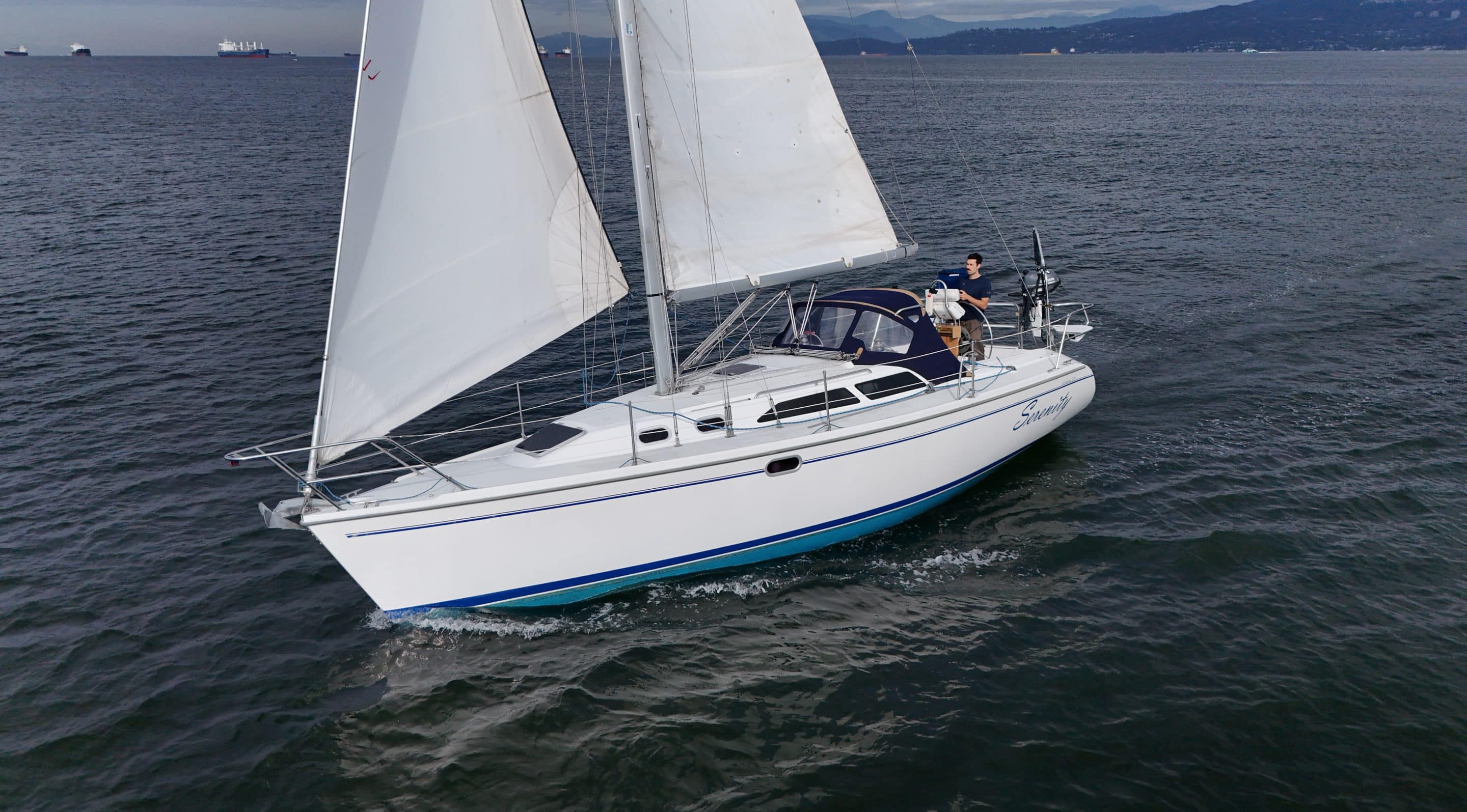

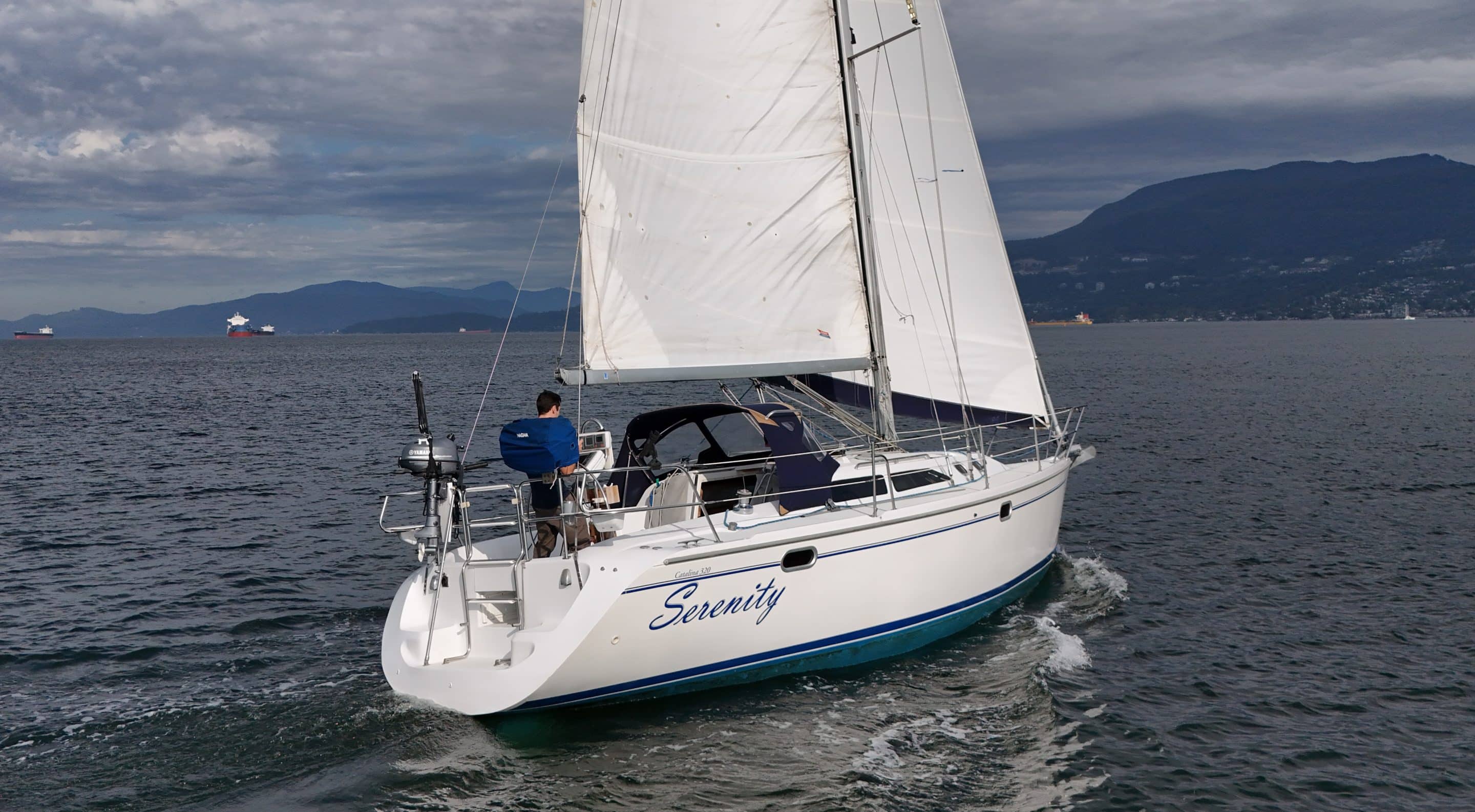

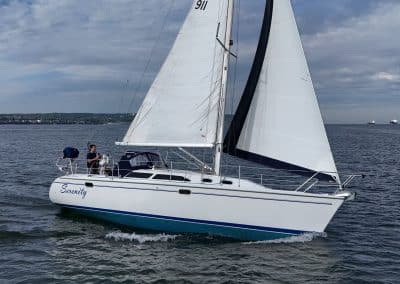

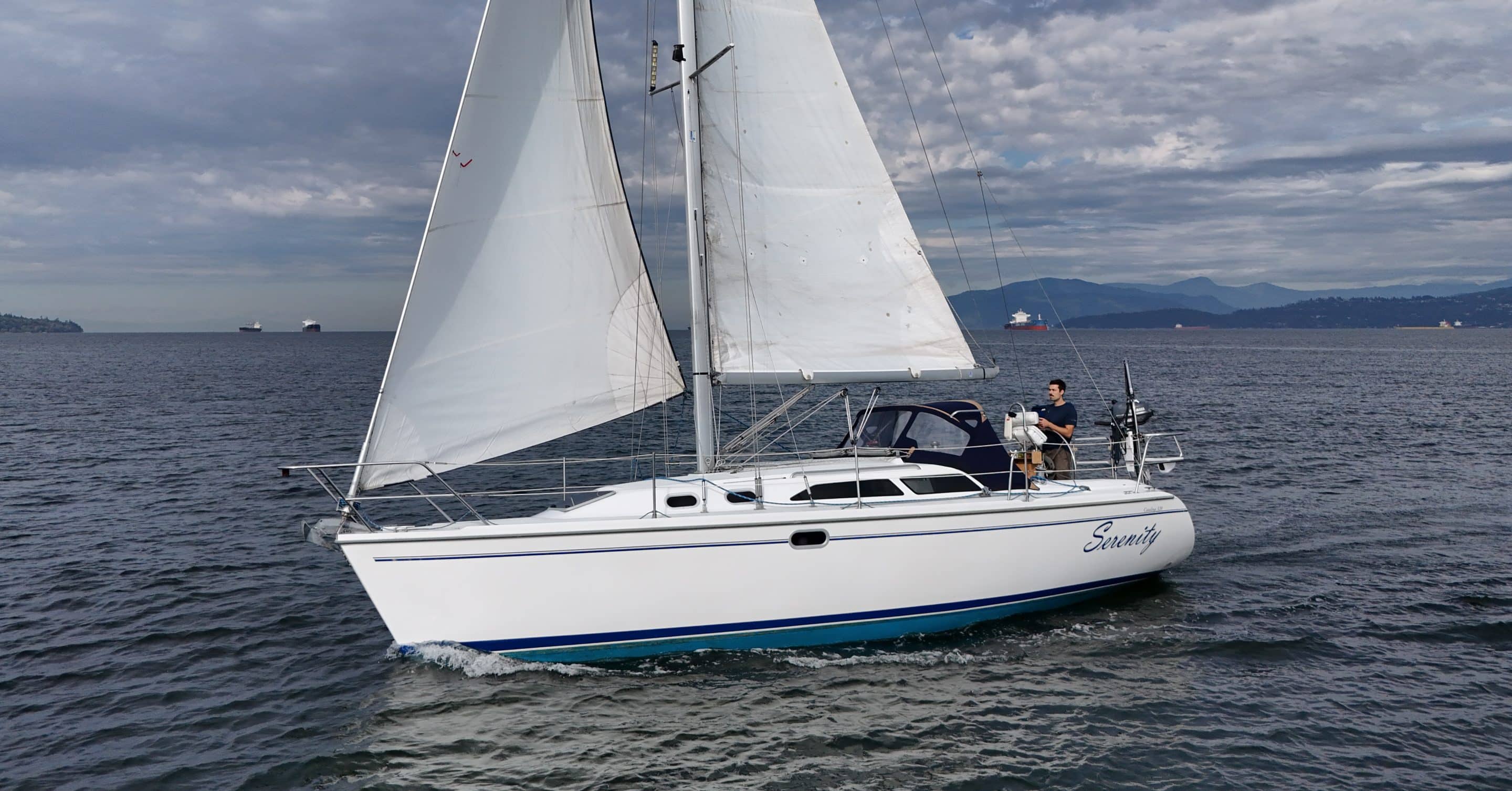

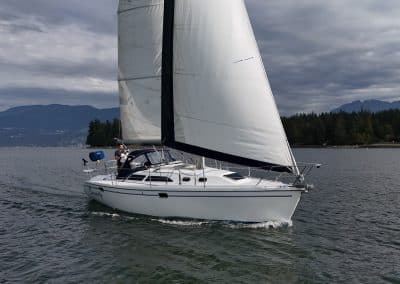

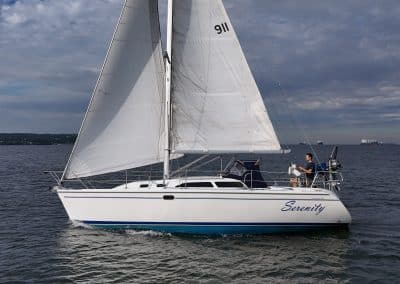

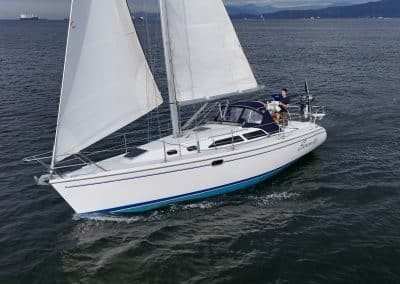

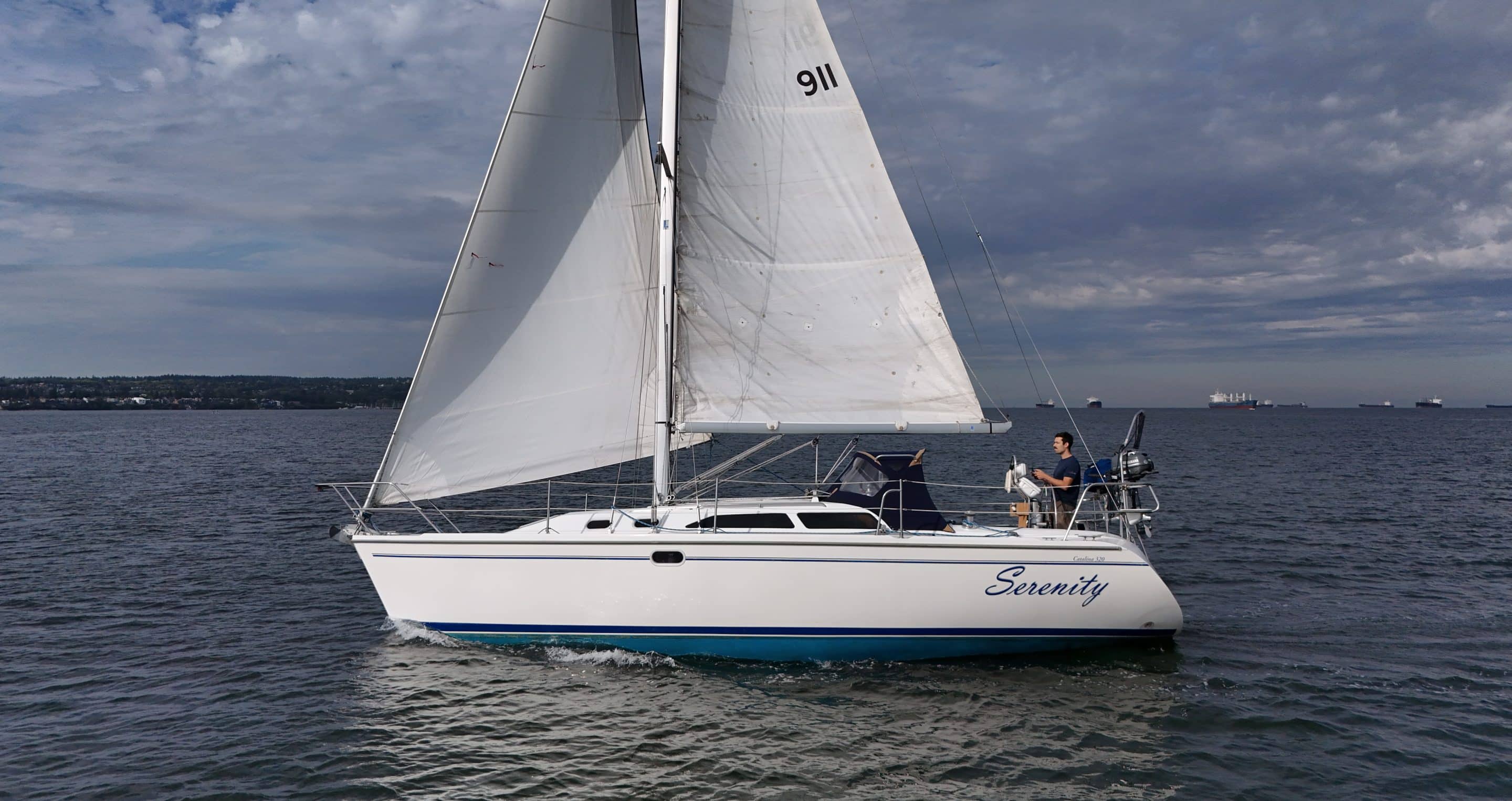

A well-maintained 2002 Catalina 320 on shoal draft — 4’3″ of clearance opens up anchorages that fin keel boats can’t touch, a genuine advantage for BC coastal cruising from the Gulf Islands to Desolation Sound. Navigation is handled by a Raymarine C90W chartplotter with full ST60 instrument suite, ST4000+ autopilot with clutch drive, and a Standard Horizon Intrepid DSC VHF. Straightforward and reliable electronics package with everything needed for comfortable coastal passages.
Recent upgrades give this boat a strong foundation going forward. The Kanzaki transmission was fully rebuilt in October 2025 — all internal components replaced. Both house batteries, starting battery, charging relay, and battery switch were all replaced in May 2026, so the electrical system is essentially new. The Tides Marine Strong Track mainsail luff track system was installed at the same time as the transmission work, along with a new radar reflector.
The La Fabrica canvas package includes a dodger with cover, helm cover, and cockpit cushions. The Highfield Roll-Up 250 goes with an Ocean Marine Systems outboard hoist and a Yamaha 6hp four-stroke. Below, a Force 10 propane stove, Adler Barbour refrigerator, and Samsung microwave. The Pro Mariner 40A charger and ProSafe galvanic isolator round out a tidy electrical setup.
Serenity is a capable, accessible coastal cruiser with meaningful recent investment in the systems that matter most.
Preliminary Specifications
PRINCIPAL CHARACTERISTICS
- Year: 2002
- LOA: 32’6″
- LWL: 28’0″
- Beam: 11’9″
- Draft (shoal keel): 4’3″
- Displacement: 11,700 lbs
- Ballast: 4,400 lbs
- Cabin headroom: 6’3″
- Fuel capacity: 19 US gal
- Water capacity: 45 US gal
- Holding tank: 22 US gal
- Engine: Yanmar 3GM30F 27hp diesel
- Engine hours: 741
- Designer: Gerry Douglas / Catalina Yachts
CONSTRUCTION
- Fiberglass hull with full structural grid and hull liner
- Fiberglass deck, non-skid, white with grey two-tone
- Lead shoal keel with stainless steel attaching bolts
- Internally-mounted spade rudder
- One-piece fiberglass headliner throughout
- Corian countertops in galley
SAILING PACKAGE
- Fully-battened Dacron mainsail
- Tides Marine Strong Track mainsail luff track system with new sail slides (October 2025)
- Furling Dacron genoa with Schaefer Marine furling system
- New mainsheet
- Double spreader anodized aluminum mast
- Internal low-stretch halyards
- Complete standing and running rigging
- Rigid adjustable boom vang
- Mainsheet traveler with adjuster
- Mid-boom sheeting
- Single-line mainsail reefing system
- Radar reflector (October 2025)
- (2) Lewmar #44 two-speed self-tailing primary winches
- (2) Lewmar #30 two-speed self-tailing winches (coachroof/halyards)
- (2) Spinlock XTS CAM rope clutches — mainsheet, coachroof
- Inboard genoa tracks with low-lead blocks
- Jib and main halyards led aft with sheet stoppers
PROPULSION, STEERING & CONTROLS
- Yanmar 3GM30F 27hp 3-cylinder freshwater-cooled diesel
- Kanzaki KM2P marine transmission — fully rebuilt (October 2025)
- Pedestal steering with brake and engine controls
- 40″ stainless steel destroyer wheel with pedestal guard
- Ritchie illuminated binnacle compass
- New ignition switch (May 2026)
- Bilge blower
- Emergency tiller
DECK & COCKPIT
- La Fabrica dodger with cover
- Helm cover
- Cockpit cushions
- Highfield Roll-Up 250 inflatable tender
- Yamaha 6hp four-stroke outboard
- Ocean Marine Systems outboard hoist
- Electric anchor windlass
- Plow anchor with chain and rode
- Danforth anchor with chain and rode (spare)
- Magma propane BBQ
- Walk-through transom with swim platform and stern boarding ladder
- Stainless steel bow pulpit and stern rail
- Double lifelines with gates port and starboard
- Stainless steel handrails on cabin top
- Mooring cleats fore and aft; spring cleats midship
- Large sail locker/lazarette

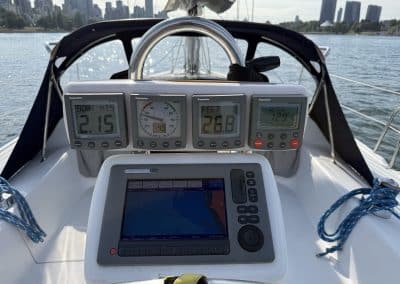

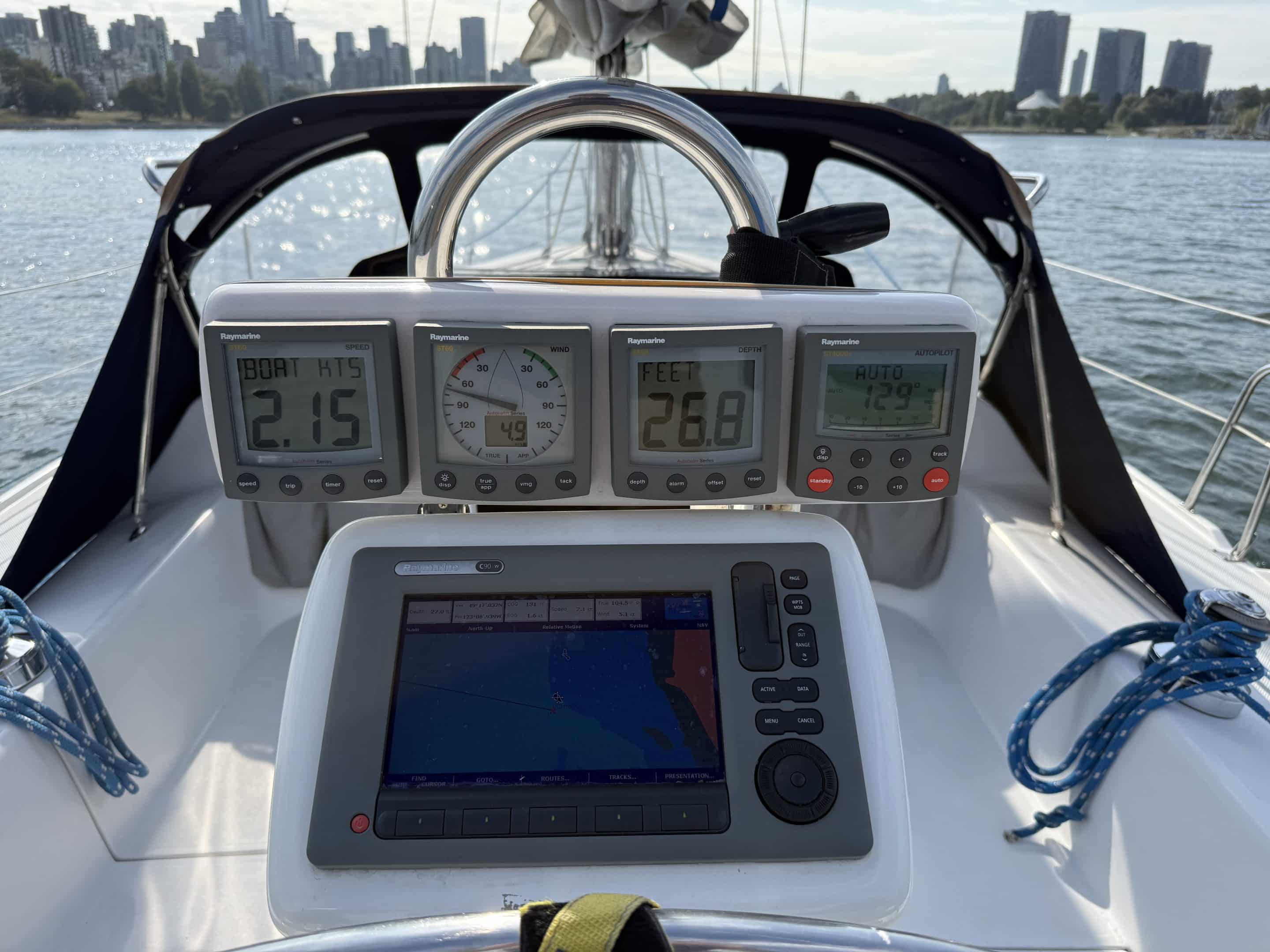

ELECTRONICS & NAVIGATION
- Raymarine C90W 9″ Widescreen GPS Chartplotter
- Airmar Intelligent triducer — depth, speed, temperature
- Raymarine ST60 wind, depth, and speed displays
- Raymarine ST4000+ wheel pilot with clutch drive
- Standard Horizon Intrepid GX1260S DSC VHF marine radio
- Ritchie illuminated binnacle compass
- West Marine clock and barometer — bulkhead mounted in cabin
- Pioneer CD player with Bluetooth
- (2) cabin speakers
- (2) cockpit speakers

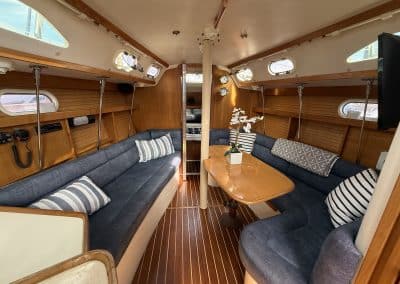

ACCOMMODATIONS

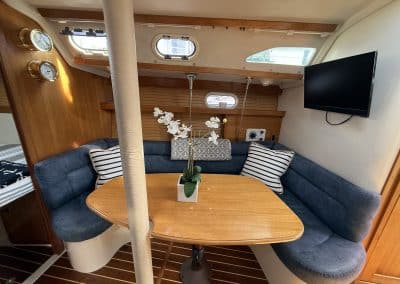

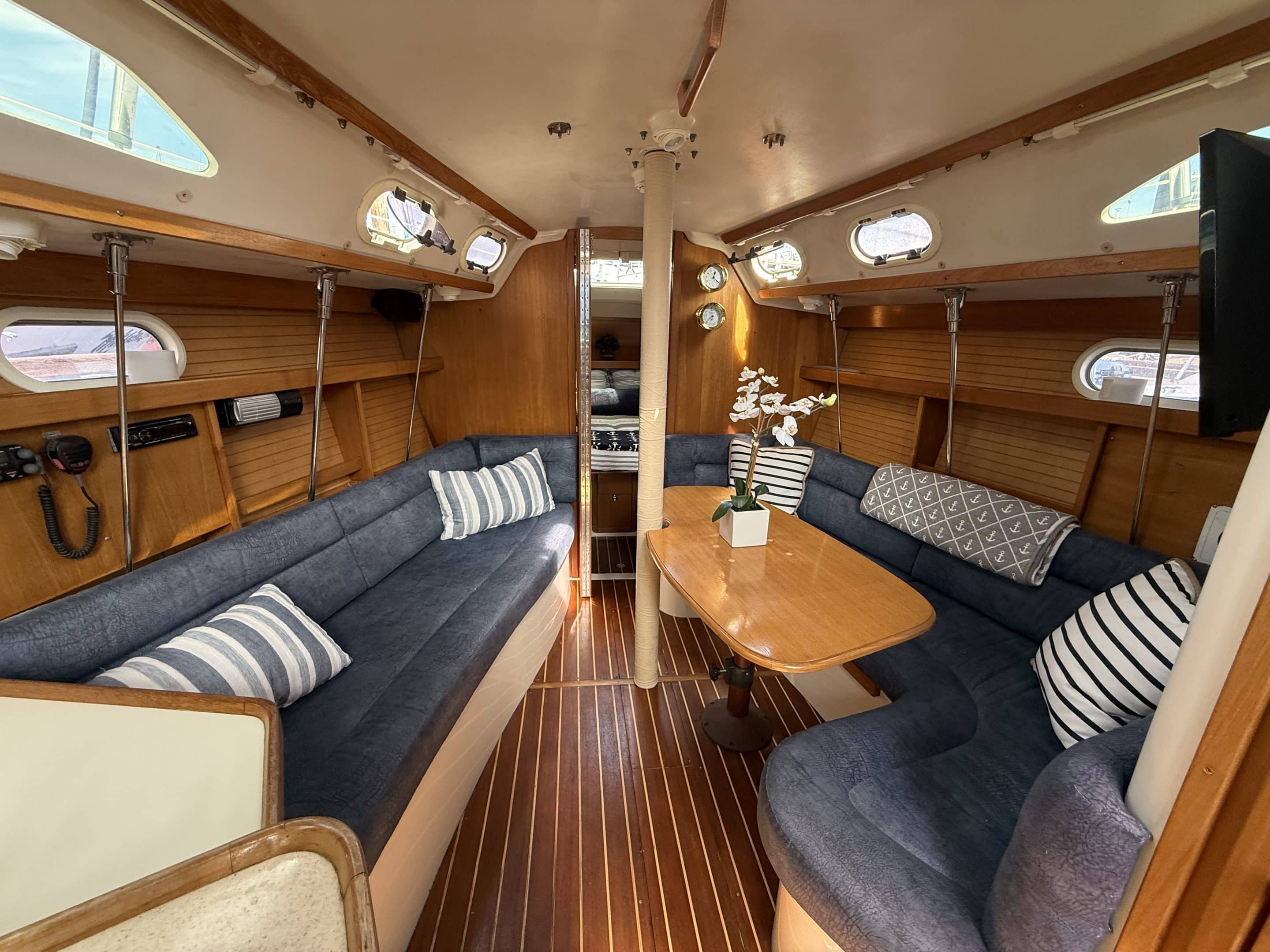

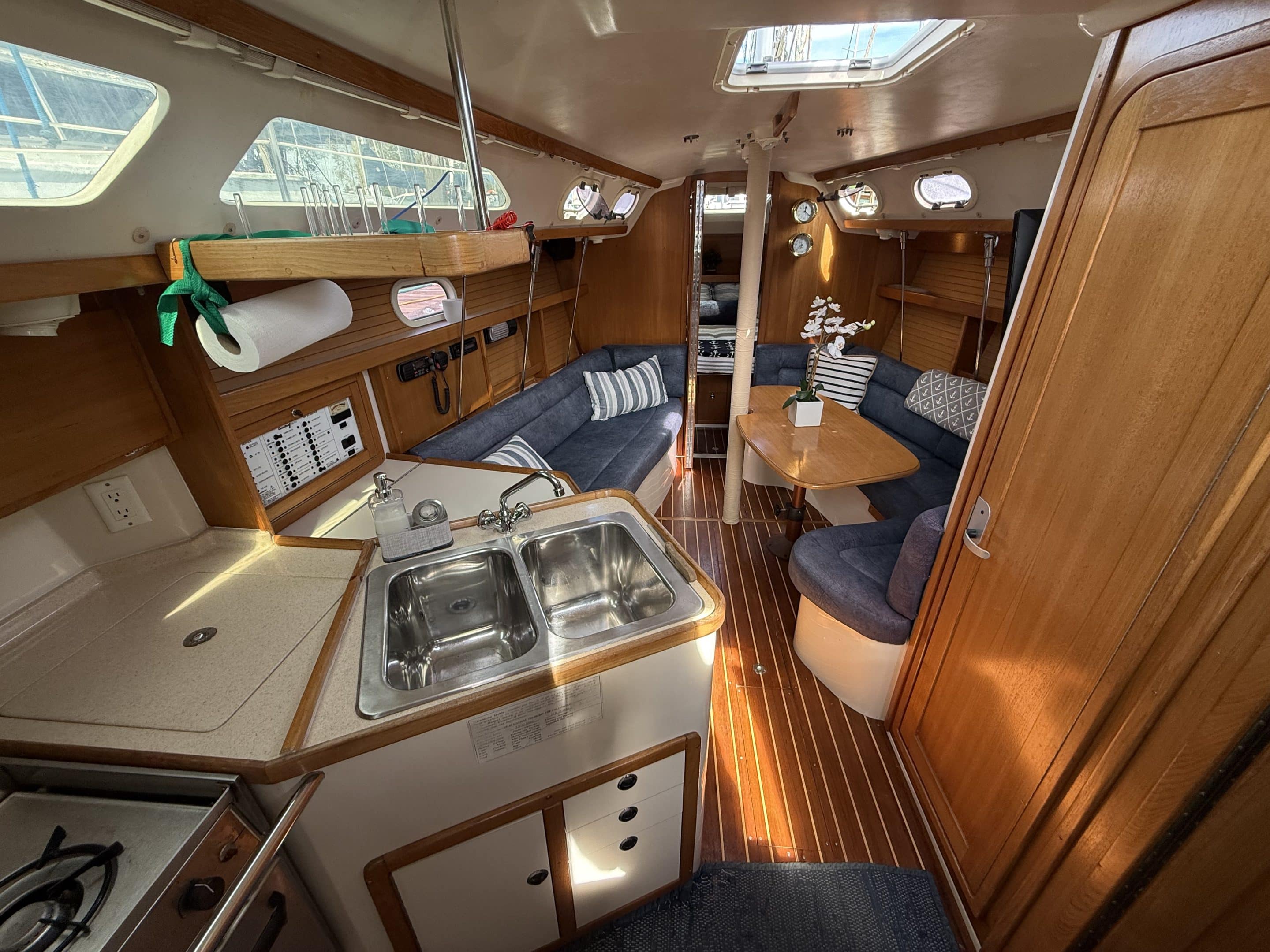

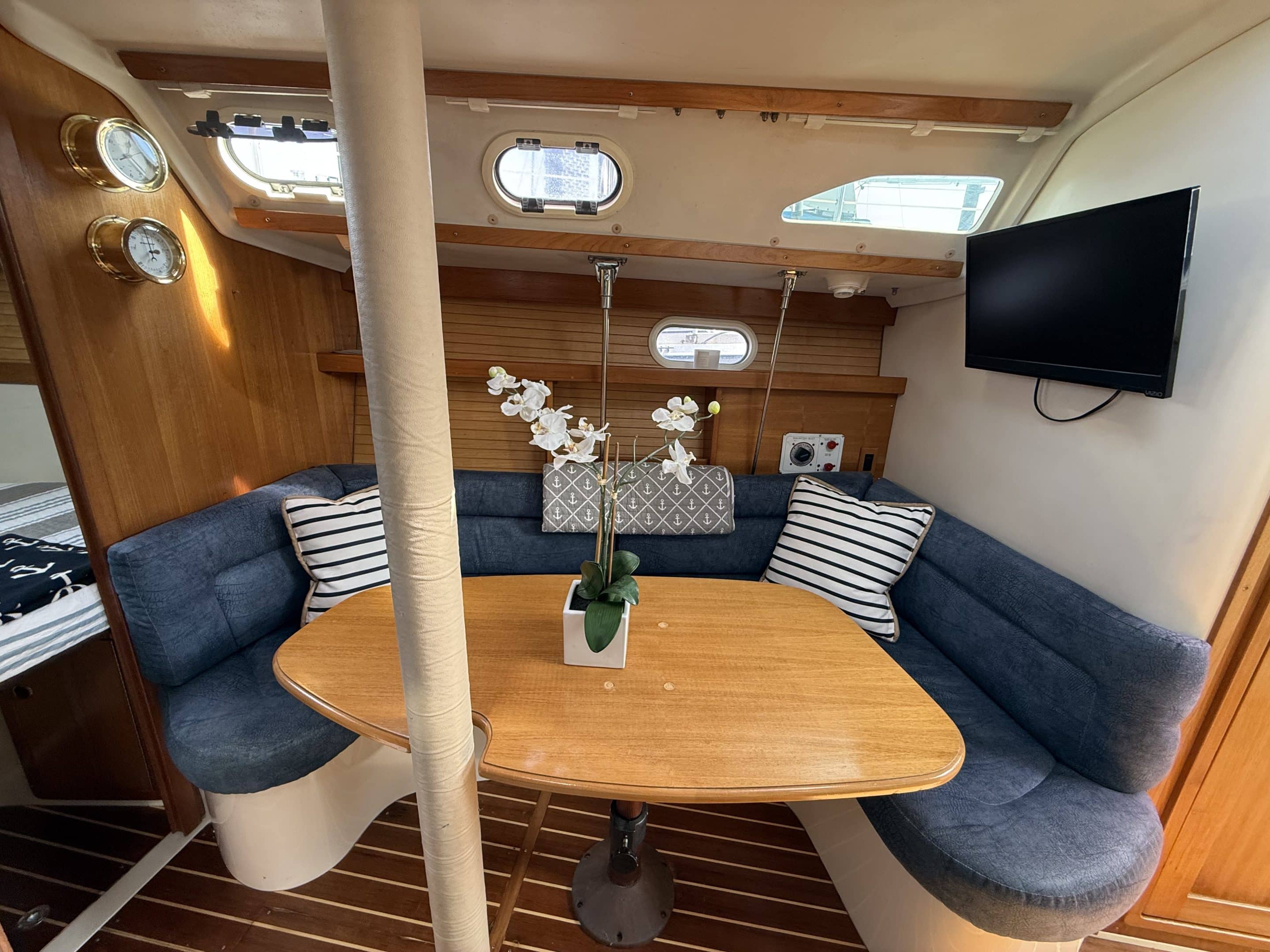

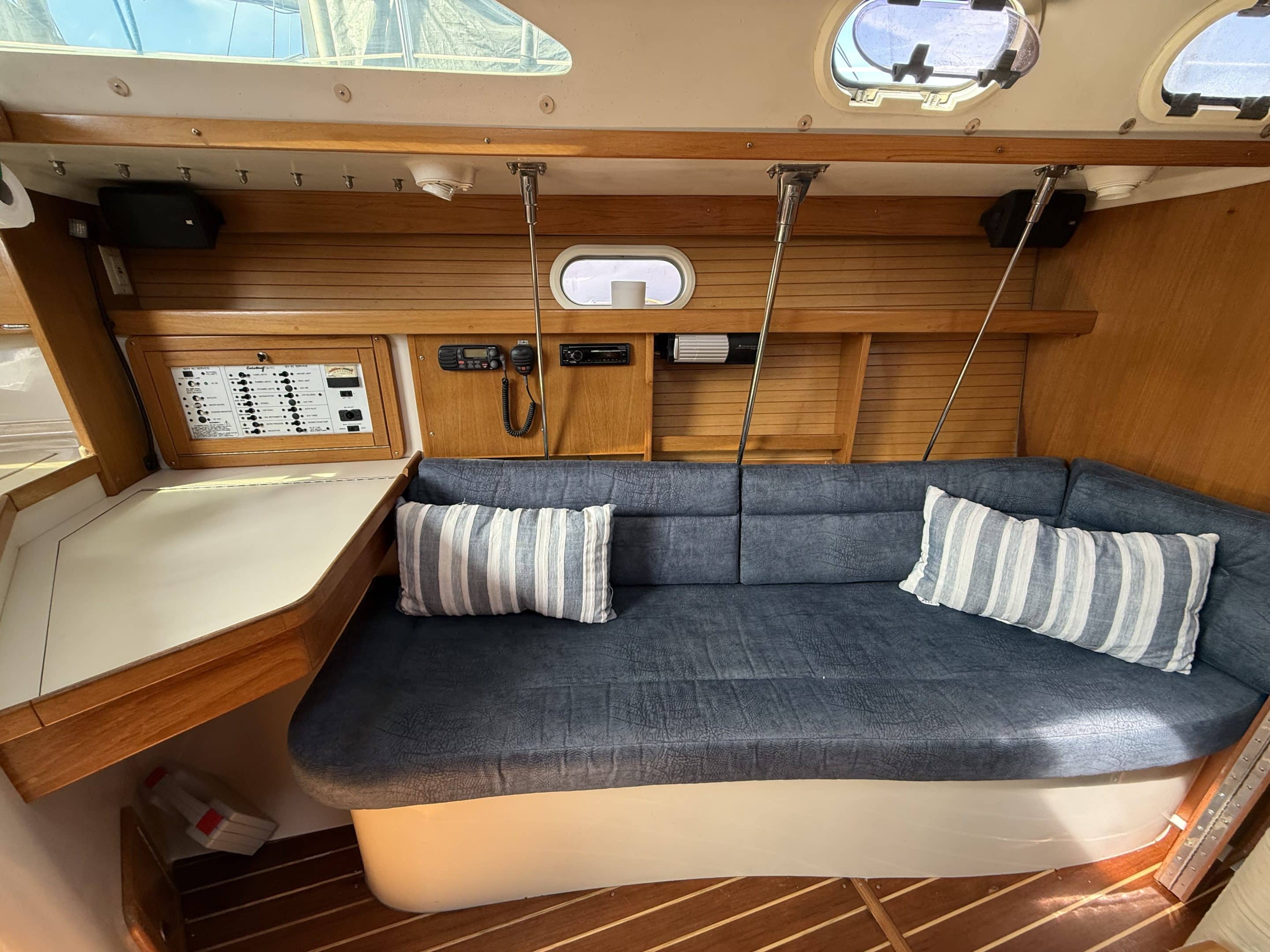

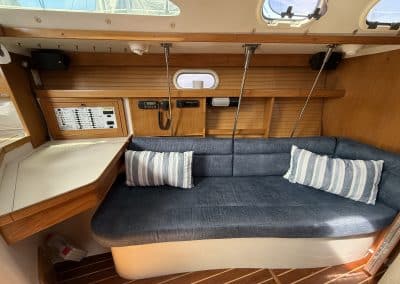

- Port settee and convertible U-shaped starboard dinette (converts to double berth)
- Teak and holly cabin sole
- Navigation table forward of galley
- Vizio flat screen TV — wall mounted in salon
- Opening ports and hatches throughout
- 6’3″ standing headroom

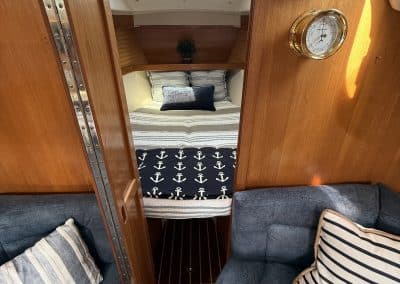

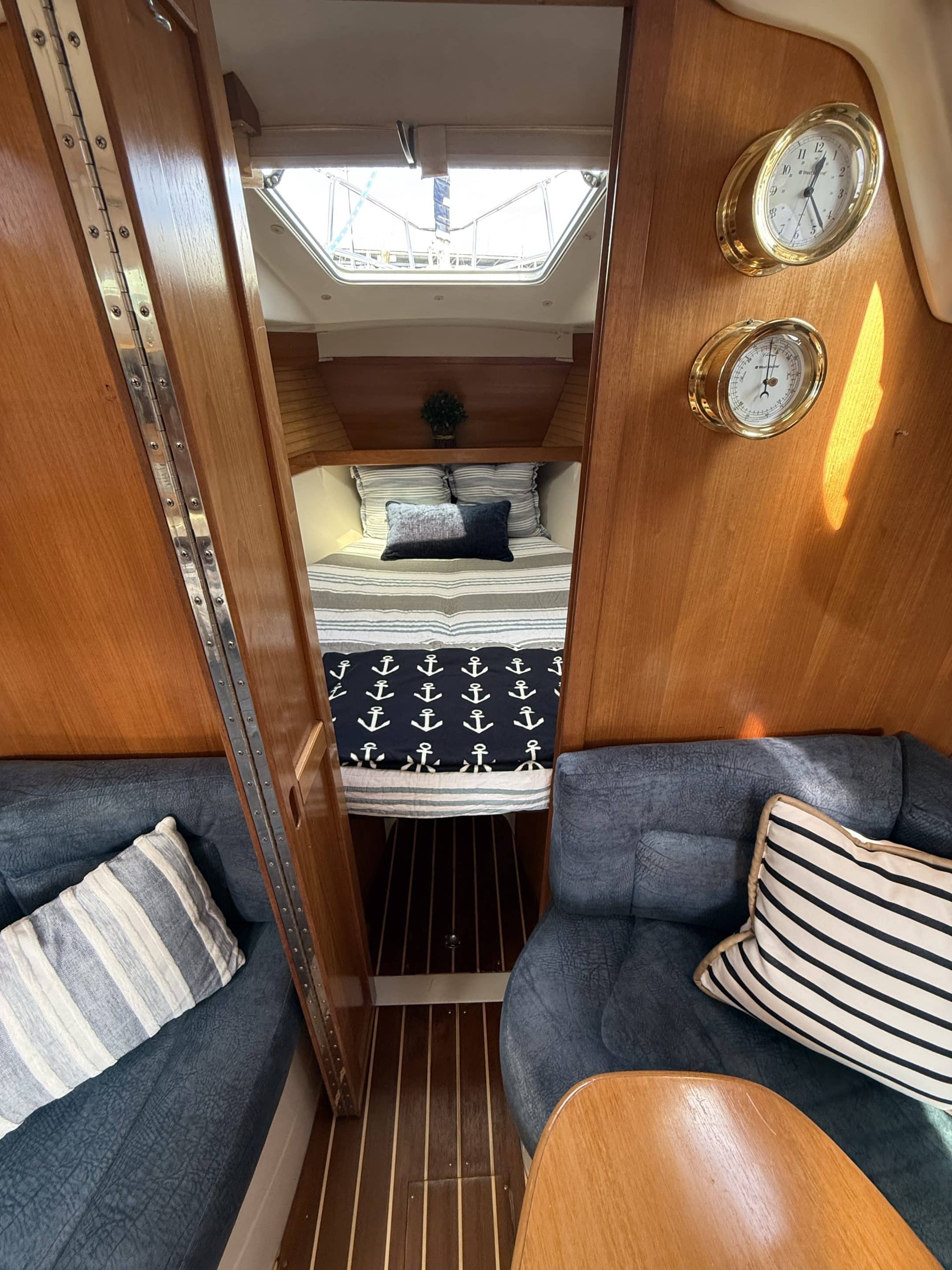

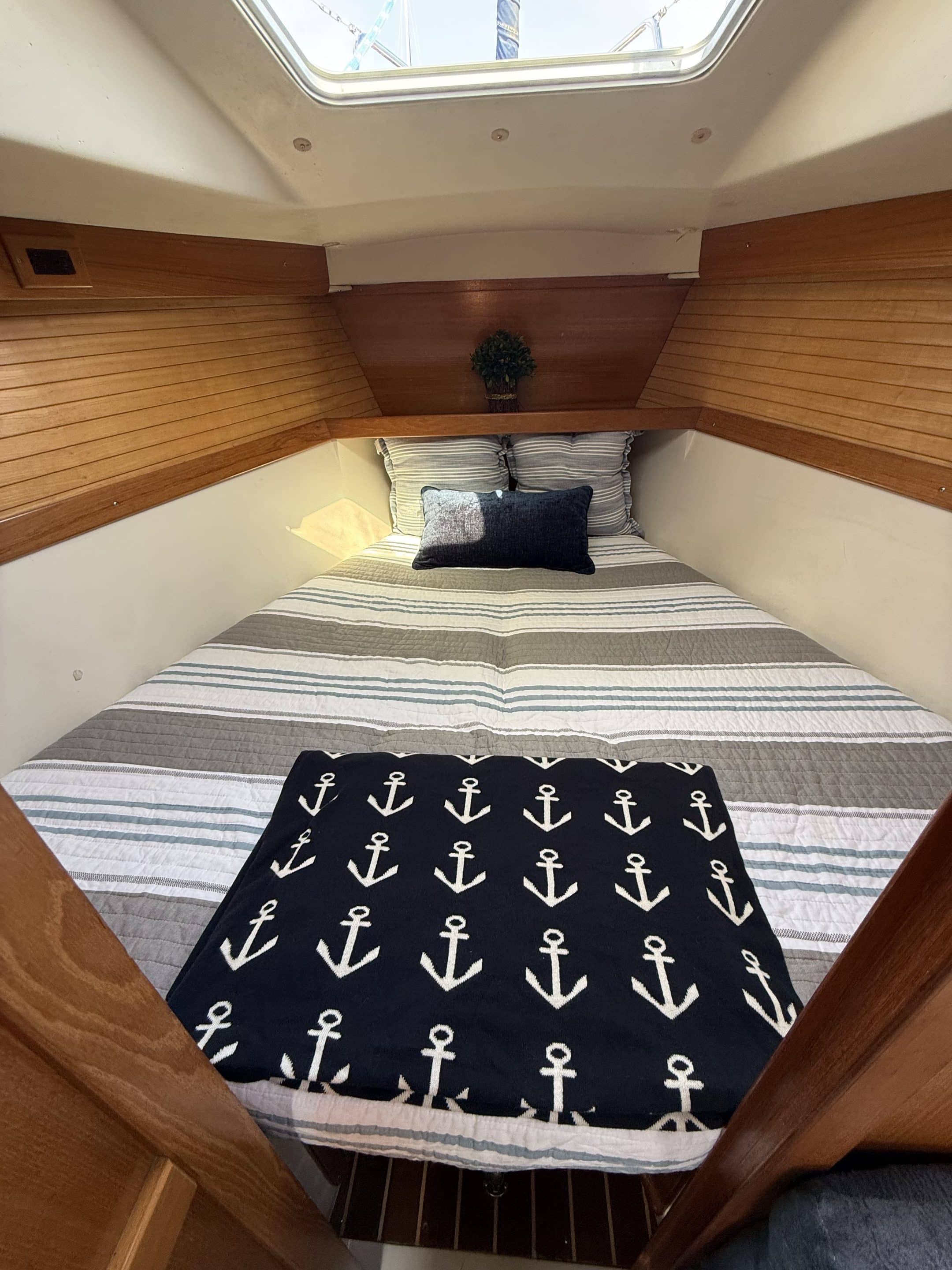

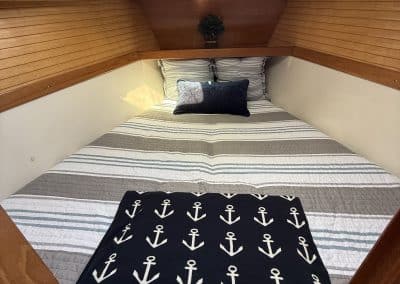

- V-berth forward with storage below, hanging locker, opening deck hatch

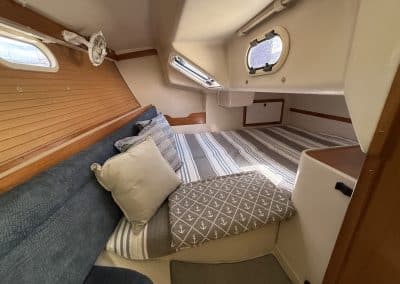

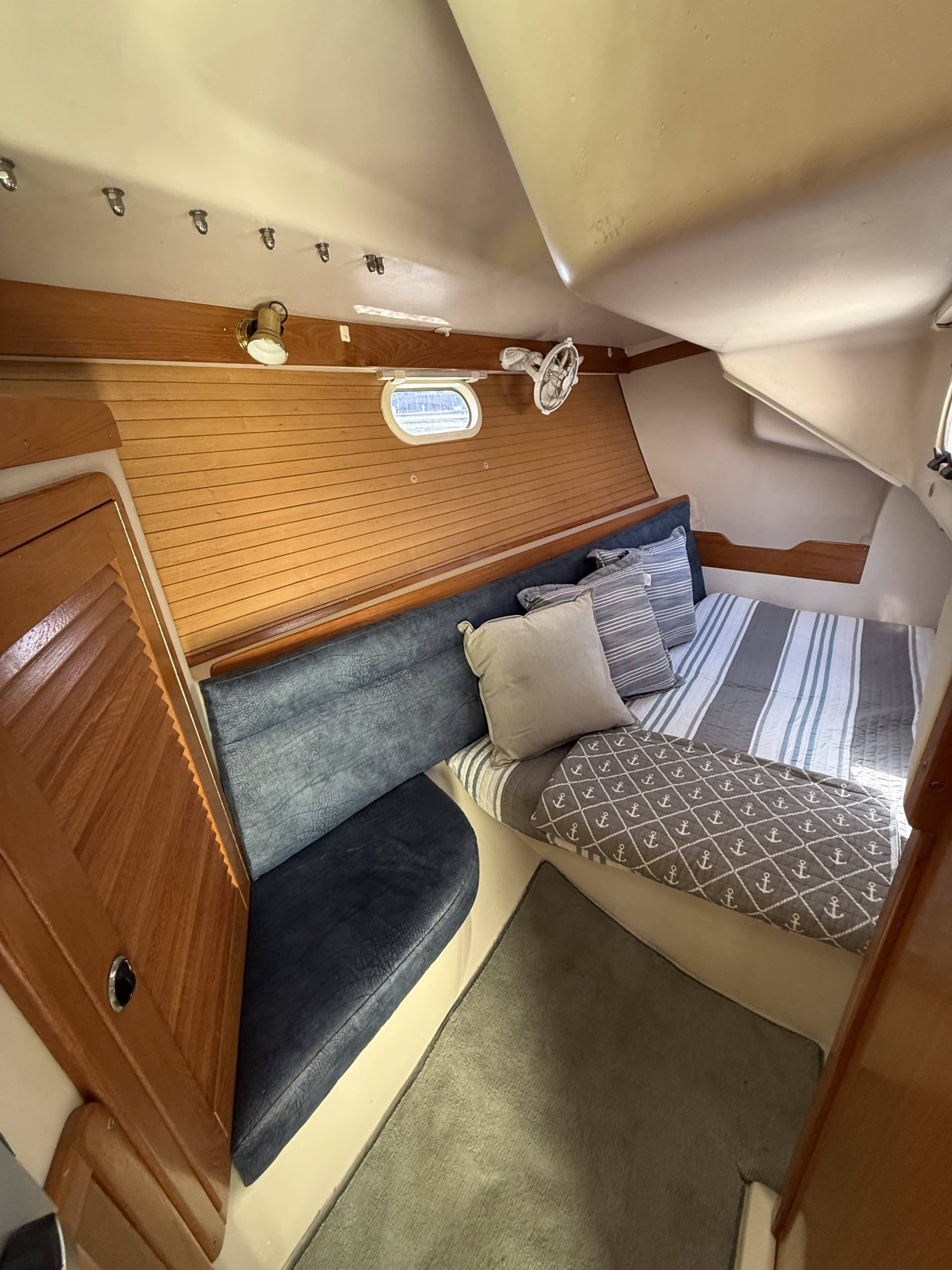

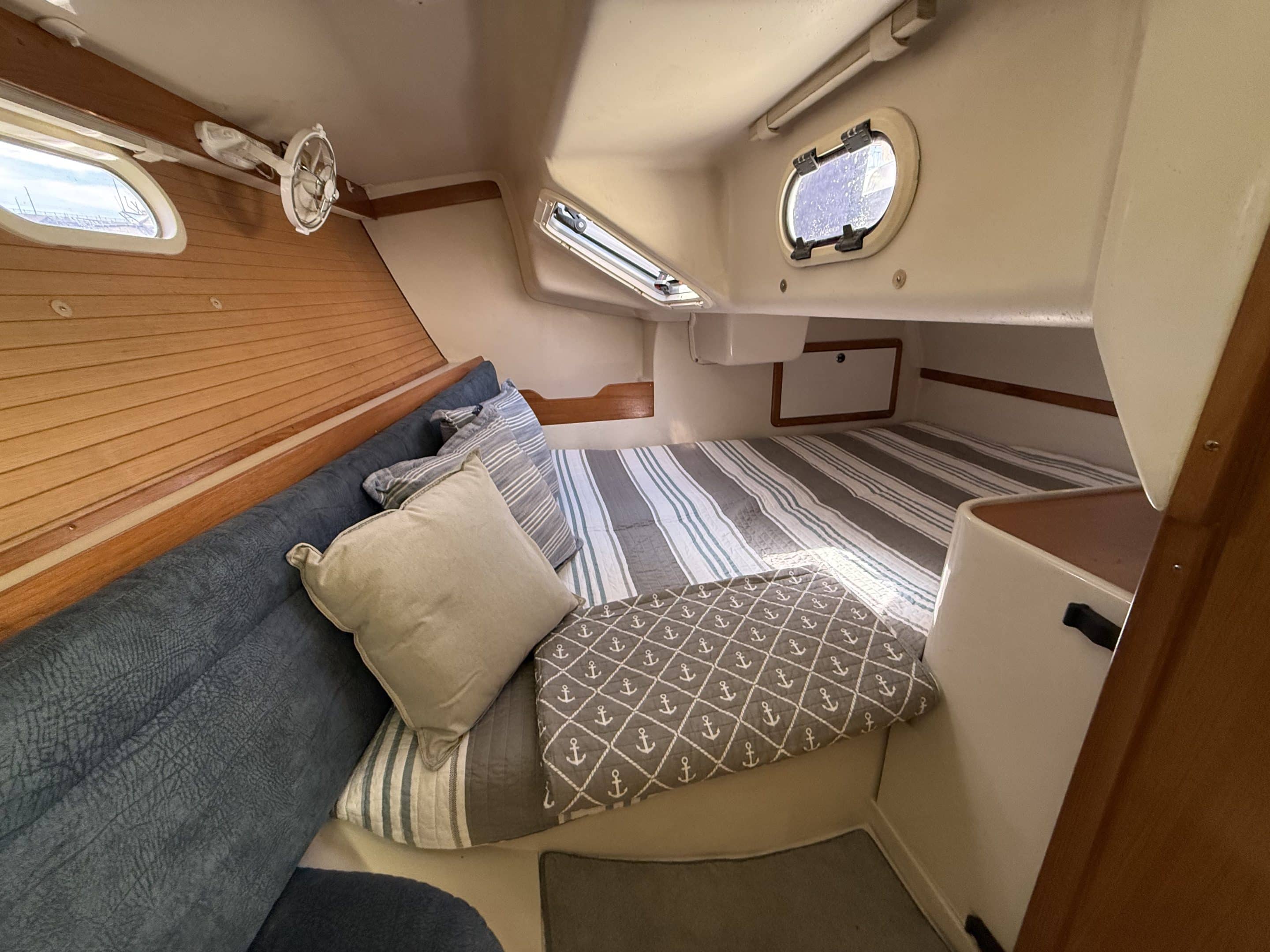

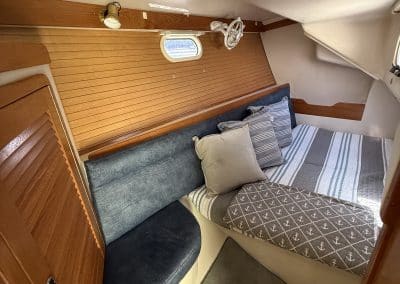

- Aft cabin with large athwartships double berth and hanging locker

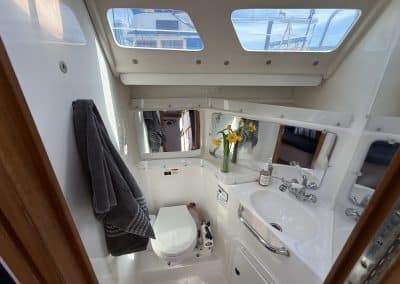

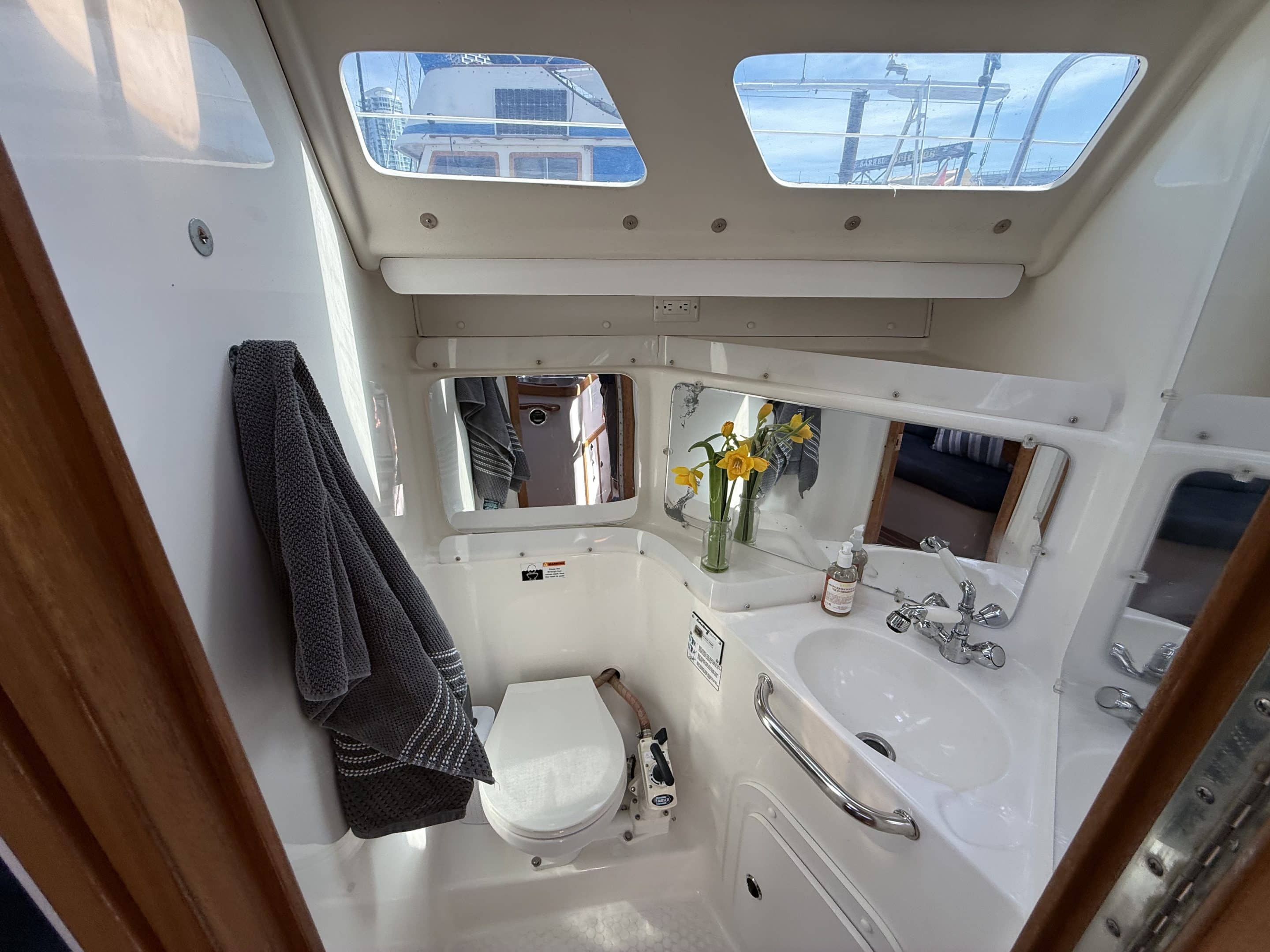

- Head: marine toilet, holding tank, integral shower with sump, vanity, hot and cold pressure water

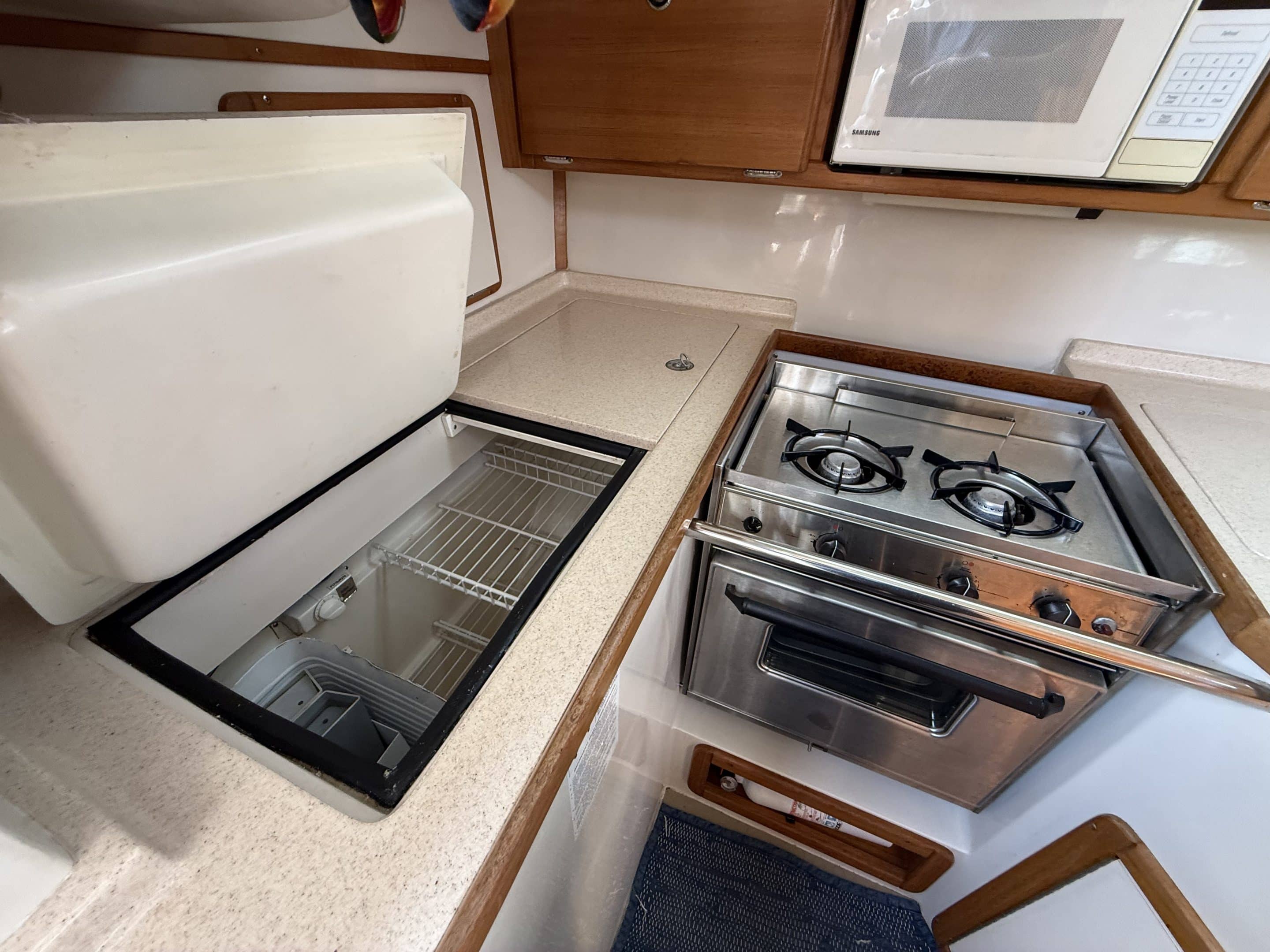

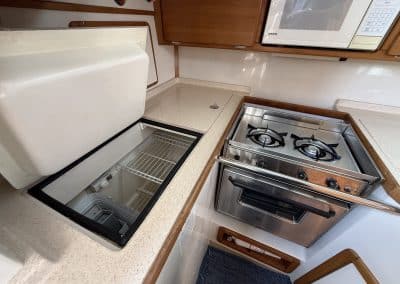

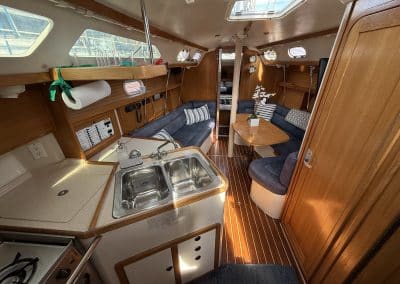

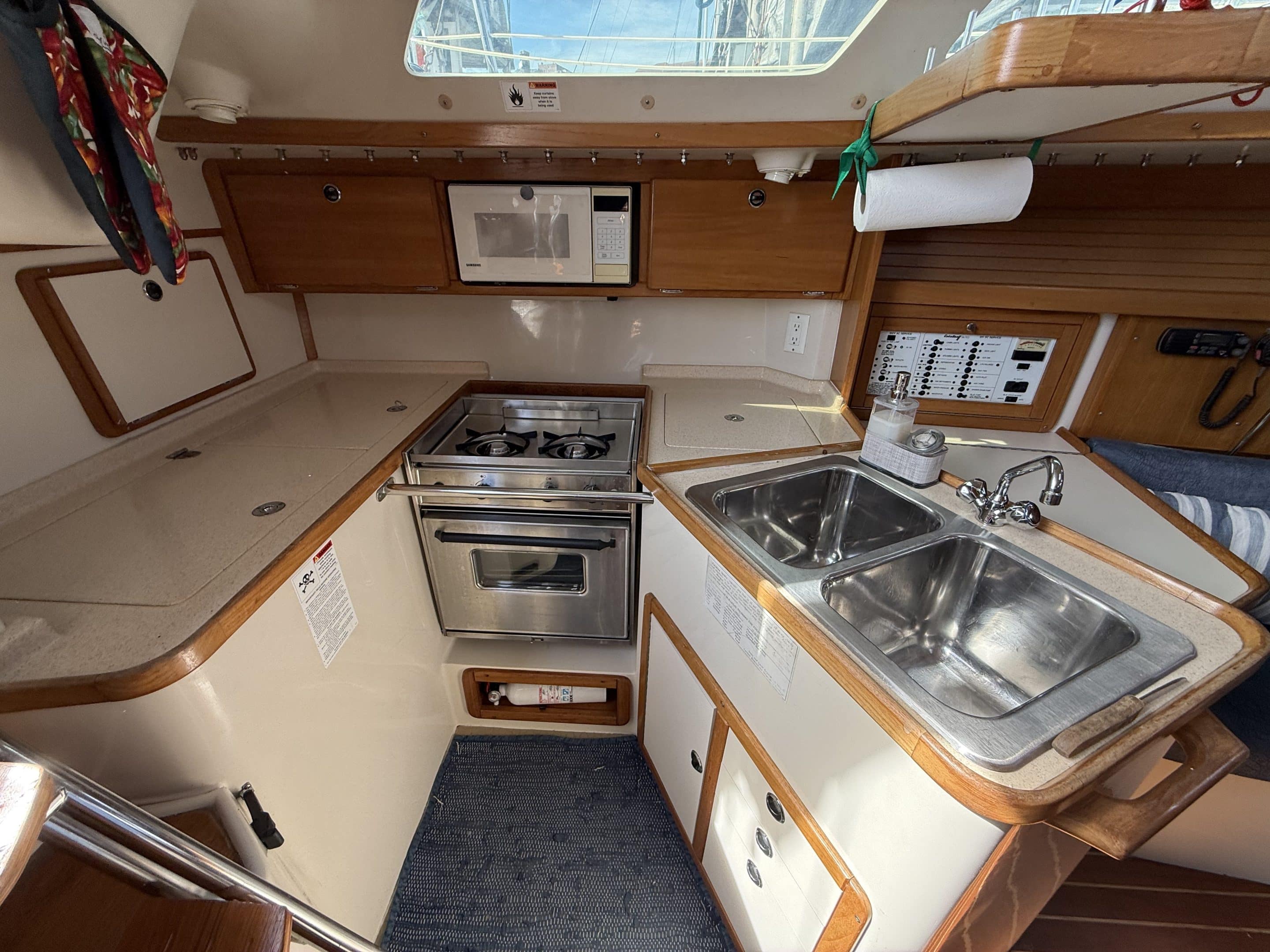

GALLEY
- Adler Barbour 12V DC powered refrigerator
- Force 10 2-burner gimballed propane stove with oven
- Samsung microwave
- Double stainless steel sink with new mixer faucet (May 2026)
- Corian countertops
- Ample storage cabinetry
ELECTRICAL EQUIPMENT
- (2) Victron 12V 165Ah AGM deep-cycle house batteries (May 2026)
- Marine Master DP3DT high-capacity 12V starting battery (May 2026)
- Blue Sea Systems SI-ACR 120A automatic charging relay (May 2026)
- 4-position 200A battery switch (May 2026)
- Pro Mariner ProNautic 1240P 40A battery charger
- Pro Mariner ProSafe FS-30 30A galvanic isolator
- 120V AC / 12V DC dual-voltage system
- Shore power inlet with circuit protection
- LED navigation lights
RECENT SERVICE
- Tides Marine Strong Track mainsail luff track system installed with new sail slides; radar reflector installed — October 2025
- Kanzaki KM2P transmission fully rebuilt — clutch cone, thrust washers, cup springs, front and rear bearings, cone shifter, seals, O-ring gaskets, and lock nuts replaced; new gear oil — October 2025
- (2) new Victron AGM house batteries and Marine Master DP3DT starting battery installed; new 120A electronic charging relay and 4-position 200A battery switch installed and wired — May 2026
- New galley mixer faucet and water hoses installed — May 2026
- New ignition switch installed — May 2026
