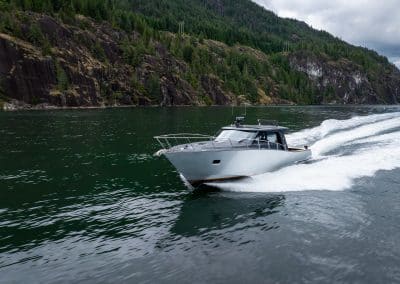

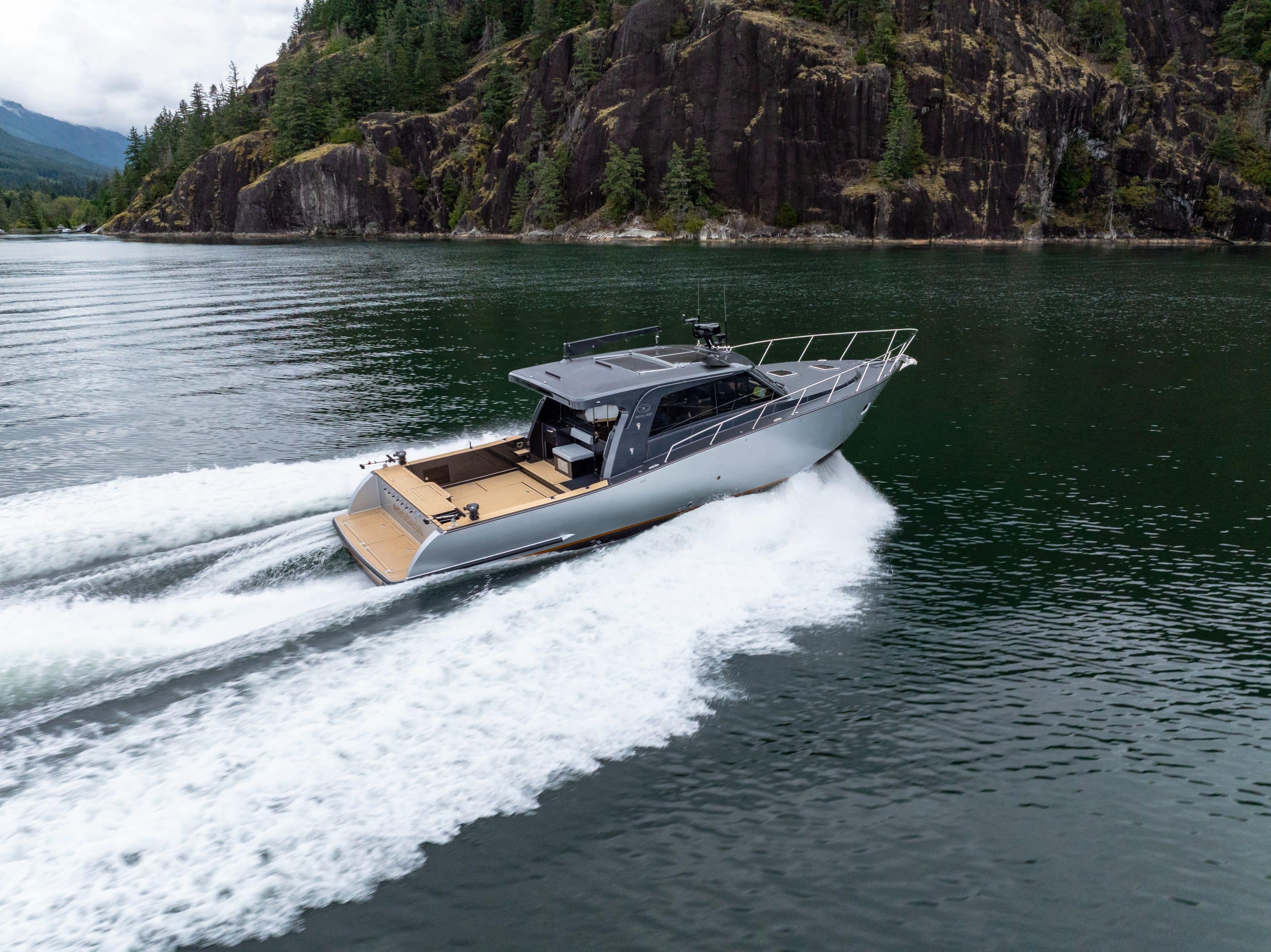

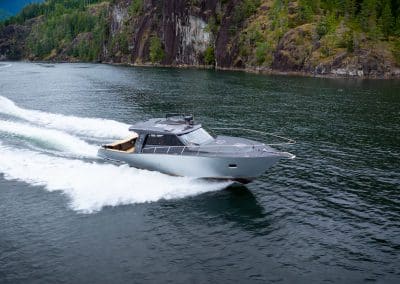

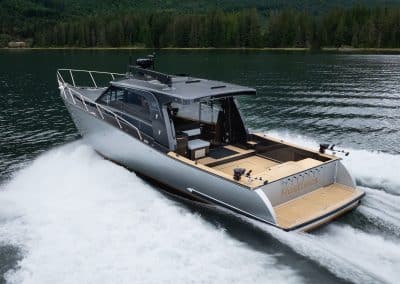

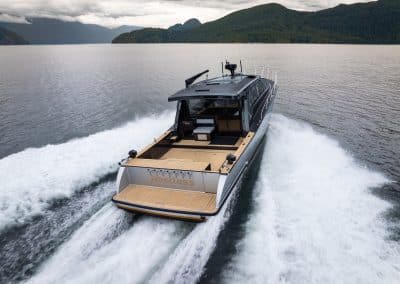

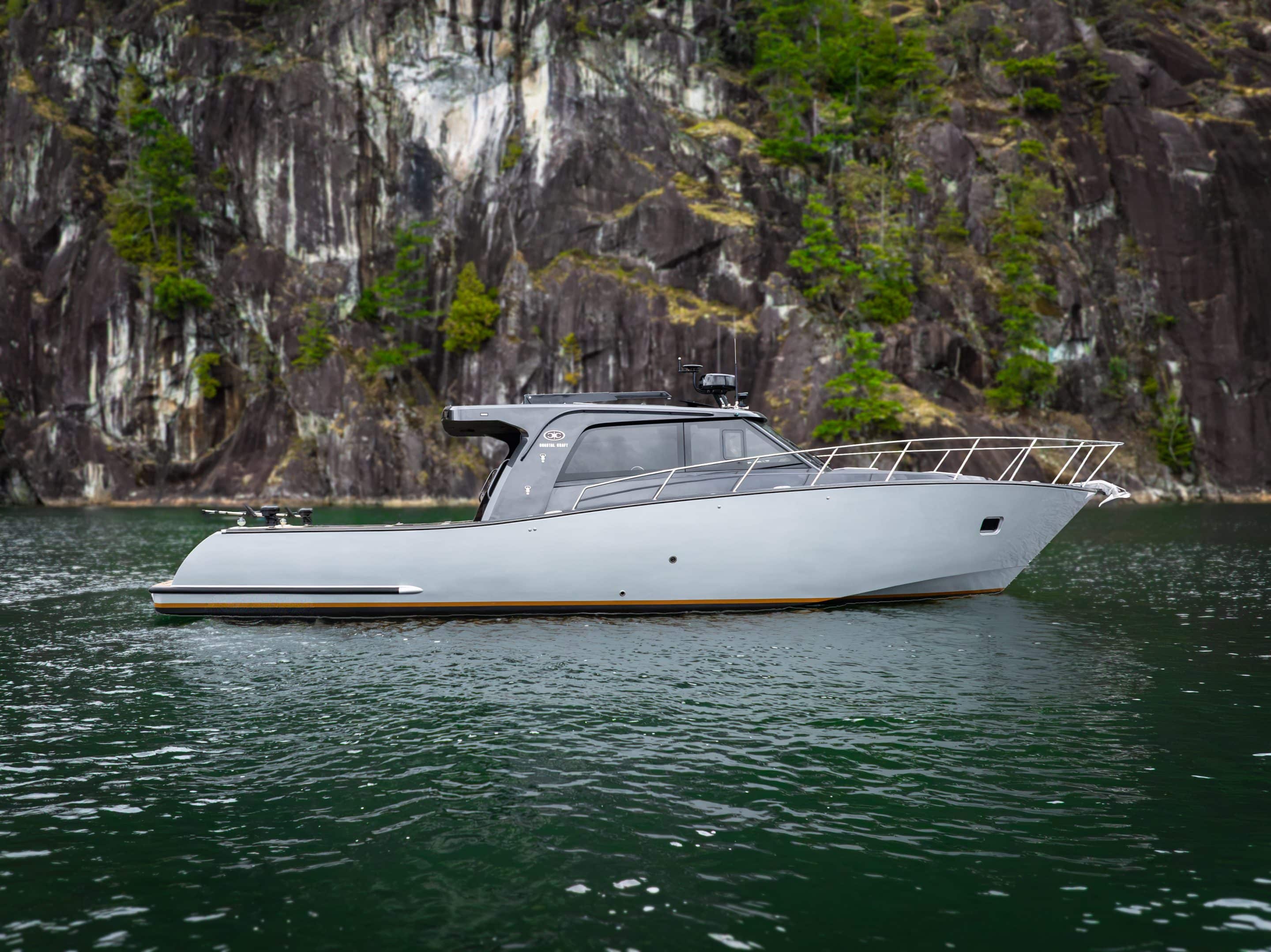

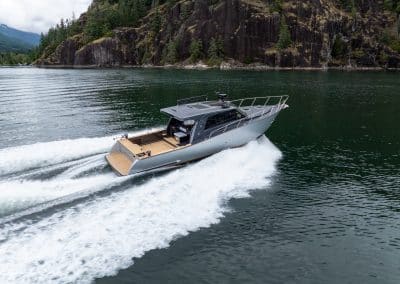

2027 Coastal Craft 48 Express Fish

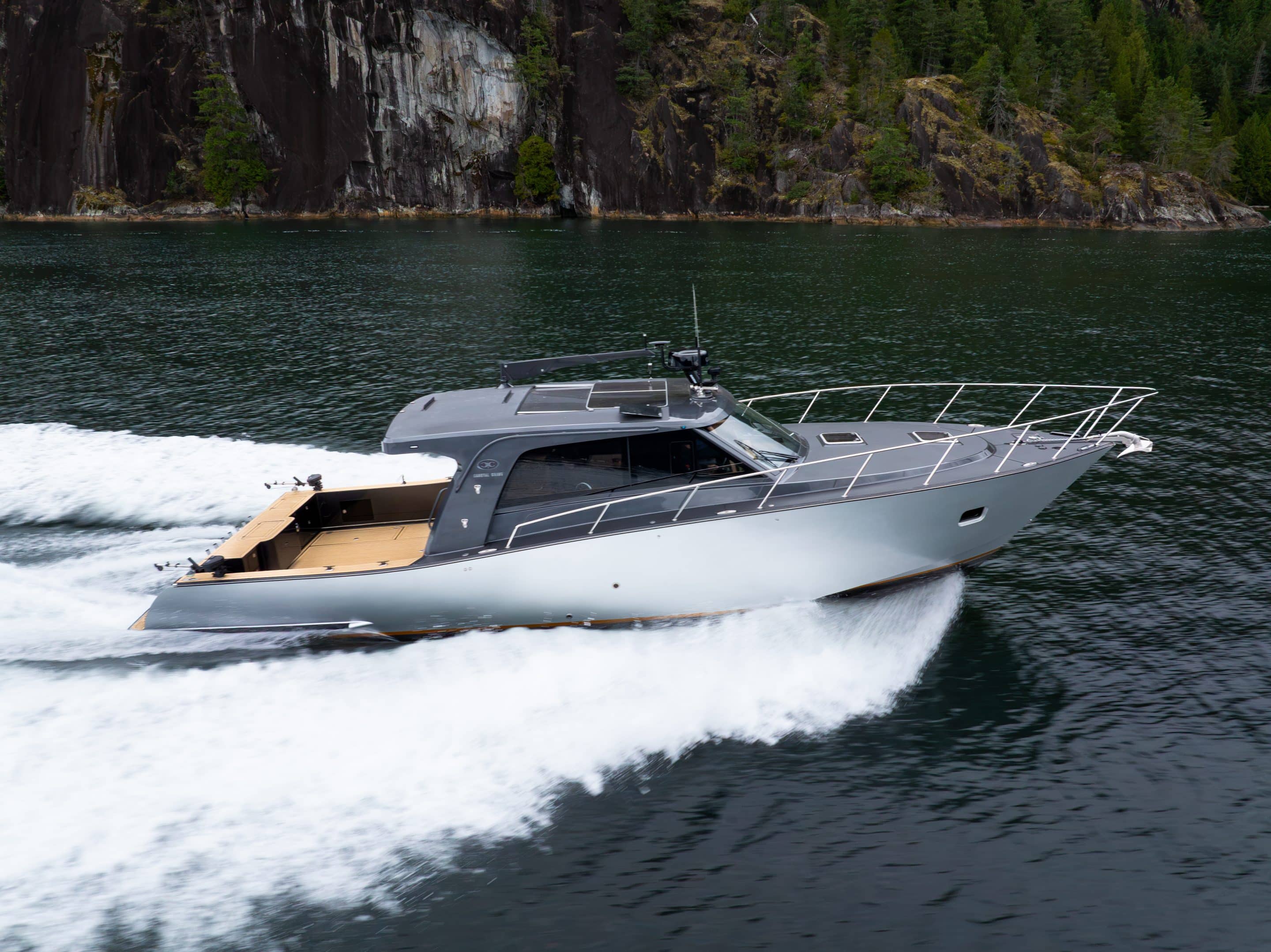

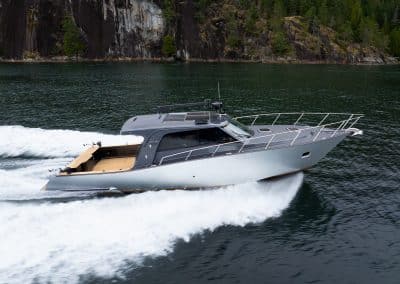

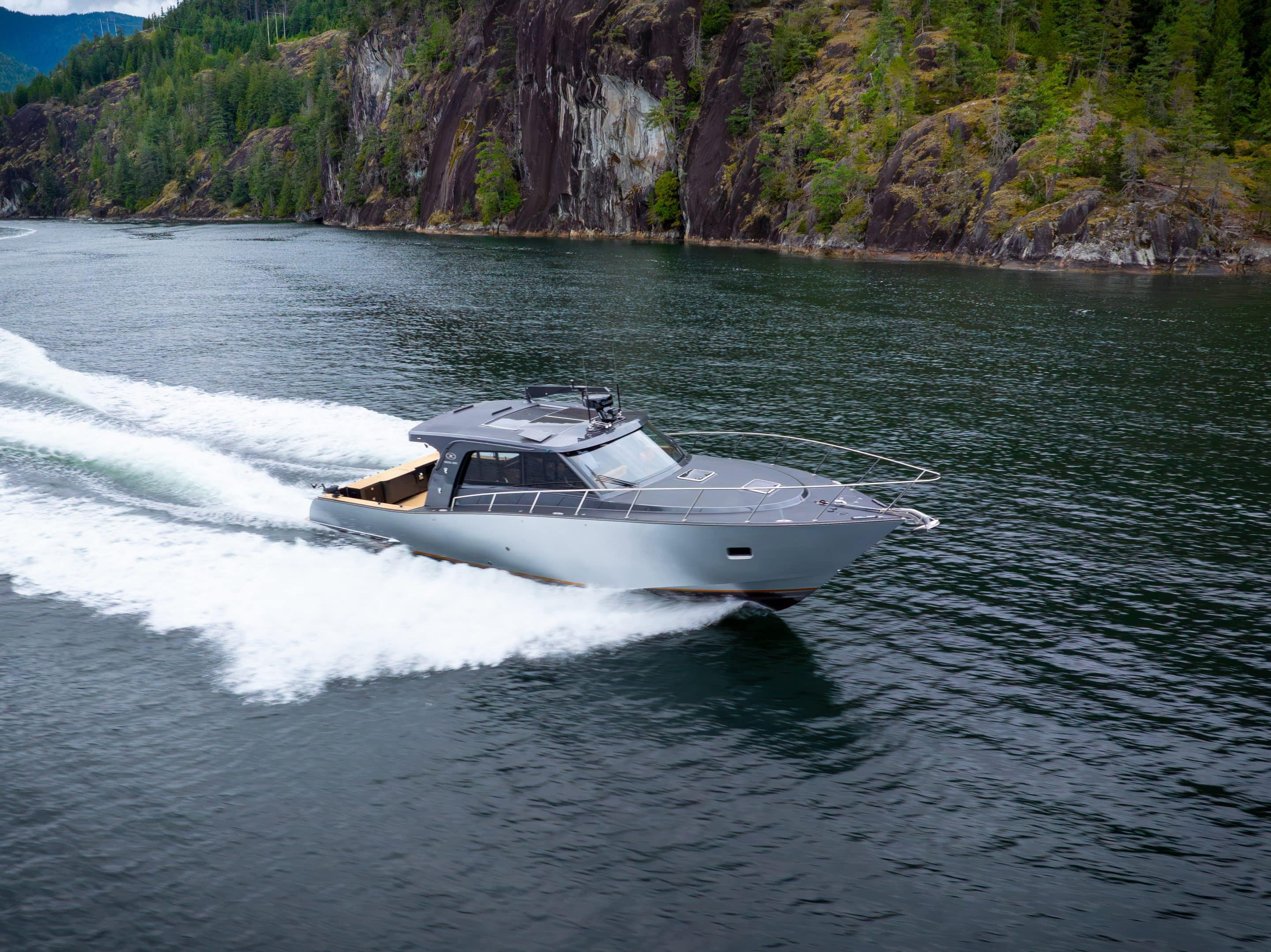

The 2027 Coastal Craft 48 Express Fish is an entirely new design and the first hull built, the largest and most heavily constructed Express Fish to come out of Coastal Craft’s Gibsons facility. Built to ABYC standards in fully welded marine aluminum with 5/16″ bottom plate, a full step heavier than the 45 Express Fish and 47T, the 48 pairs commercial-grade structure with a complete Awlgrip finish and full Soundown insulation for a notably quiet ride. Twin Volvo Penta D6-480 diesels on IPS 650 pods deliver 960 horsepower and an efficient 28 knot cruise, with a usable range from seven knots up. A 600 gallon main tank and a dedicated auxiliary for the generator and heater give the 48 serious long-range capability for extended Pacific Northwest and Southeast Alaska cruising. IPS joystick control and Humphree interceptors with Active Ride make a fifty foot boat remarkably easy to dock and keep it composed when Georgia Strait turns up.
The 144 square foot cockpit is purpose-built for serious fishing. Finished in Flexi-Teak G2 decking and cover boards, it includes a mezzanine deck with rod storage below, two insulated in-deck fish boxes, a livewell, seven transom rod holders, tackle drawers and cupboards throughout, and Burnewiin mounts in the cockpit and along the transom staple rails supporting a large fish cleaning tray. A full width swim platform 42 inches deep carries additional built-in fish boxes and is accessed through a transom door. A pop-up port side helm station brings a Volvo Glass Cockpit display, joystick and engine controls out to the working deck for backing down. Also fitted with an Isotherm refrigerator drawer, flush mount Kenyon grill, cockpit shower, six deck power points for electric reels and downriggers, a 48 inch hardtop overhang with recessed SureShade automatic awning, a Steelhead WD800 davit crane with AB 9 UL tender and Mercury 9.9, and underwater transom lights.
The interior is finished in Brookside black walnut with teak plank flooring and black walnut window frames. A one piece curved windshield, powered cocktail window, opening fritted side glass, Webasto sunroof with shade and screen, fully opening rear window and double bi-fold glass doors open the salon completely to the cockpit, making the two spaces one on a summer evening. Seating includes a U-shaped settee for six, a double-wide forward passenger seat and a helm seat on an electric slider, with fully dimmable three-zone lighting and a Fusion audio system running interior and cockpit speakers. The starboard galley is equipped with a Sub-Zero two drawer refrigerator with ice maker, a separate freezer below deck, a two burner Kenyon cooktop, a Bosch convection microwave and Corian countertops.
Accommodations are two staterooms with a head and separate shower. The master forward features an island queen berth with step platforms both sides, port and starboard hanging lockers, drawers under the berth, two overhead hatches with Oceanair screens and shades, Pompanette stainless opening portlights and dimmable art and reading lights. The aft stateroom is finished in engineered black walnut with twin bunks converting to a queen and a hanging locker with storage. The shower is a watertight stall with seat and Avonite wet wall panels.
Navigation is a full Garmin package built around twin Volvo Penta Glass Cockpit displays, with Fantom 24x closed array radar, dual frequency sounder, VHF with Morad antenna and Volvo autopilot integrated with joystick steering. Sight lines from the lower helm are among the best in the class. The 48 carries a 600Ah lithium house bank, a Victron 5kW inverter/charger and a second alternator on each engine wired direct to the house through Wakespeed regulation, allowing extended time at anchor with full refrigeration and heat without touching the generator. A Phasor 8kW generator, Espar diesel furnace serving both cabins, Webasto reverse cycle air conditioning, Hurricane diesel-fired on-demand hot water and engine-heat windshield defrost complete a systems package specified for year-round Pacific Northwest cruising.
As the first 48 Express Fish built, this is a rare opportunity to acquire a new Coastal Craft without the wait of a custom build. The boat is complete, lying on the BC coast, and available for viewing on Granville Island.
Specifications
PRINCIPAL FEATURES
- Two staterooms with one head plus one separate shower
- Constructed to ABYC yacht standards
- Nida-Core and Italian Lite panel cores
- 7 to 30 knot cruising speeds
- 35 knots top speed
- Extended range capacity
- Low sound levels
- IPS joystick offers ease of handling
- 2 helm stations
- Sport fishing cockpit
- Large salon with expansive views
- Large one-piece curved windshield
- Excellent sight lines from lower helm
- Spacious master stateroom
- Large head with separate shower
- Chef’s galley
- Yacht interior finished in black walnut
- Garmin radar/plotter/sounder/autopilot
- Automatic fire suppression system
- Fusion stereo with salon and cockpit speakers
PRINCIPAL CHARACTERISTICS
- Length overall: 50′ 0″
- Length at waterline: 39′ 6″
- Beam, maximum: 14′ 2″
- Depth: 7′ 10″
- Draft: 3′ 8″
- Height above waterline: 14′ 6″
- Displacement, fully loaded: 35,000 lbs
- Displacement, lightly loaded: 30,000 lbs
- Fuel capacity: 600 US gal
- Fresh water capacity: 90 US gal
- Black water capacity: 28 US gal
- Propulsion: (2) Volvo IPS 650
- Engine: (2) Volvo D6-480
- Propellers: (2) Volvo T4
- Fuel: Diesel
- Generator: Phasor 8 kW
CONSTRUCTION
- Marine aluminum construction
- 5/16″ 5086-H116 bottom plates
- 1/4″ 5086-H116 transom and chines
- 3/16″ 5086-H116 side plates
- 5/32″ and 3/16″ 5052-H32 decks
- 5/32″ 5052-H32 superstructure
- Welding, pulse MIG and TIG
- Soundown hull, deck and cabin insulation
- Awlgrip complete fairing and paint system
DECK HARDWARE
- Fittings all in 316 stainless steel
- (9) 10″ cleats, pop-up stainless steel
- Anchor windlass with bow foot switches and helm dash controls
- 55 lb Ultra anchor with swivel
- 100′ chain and 300′ x 5/8″ rope, marked
- Ultra anchor roller assembly
- One piece curved windshield
- Fritted side windows, two opening panels, tinted
- Port cockpit cabin window, top mount hinge, powered
- Double bi-fold rear glass panel door
- Webasto sunroof with Ocean Air shade and screen
- Lewmar rectangular port light in rear bulkhead
- (2) Lewmar 20″ deck hatches in foredeck
- Forward anchor locker port side access hatch
- Forward starboard mounted in-deck hose coil, anchor wash, domestic water
- Stainless steel bow and deck rail, forward decks and sides
- SureShade auto awning recessed in rear of hardtop

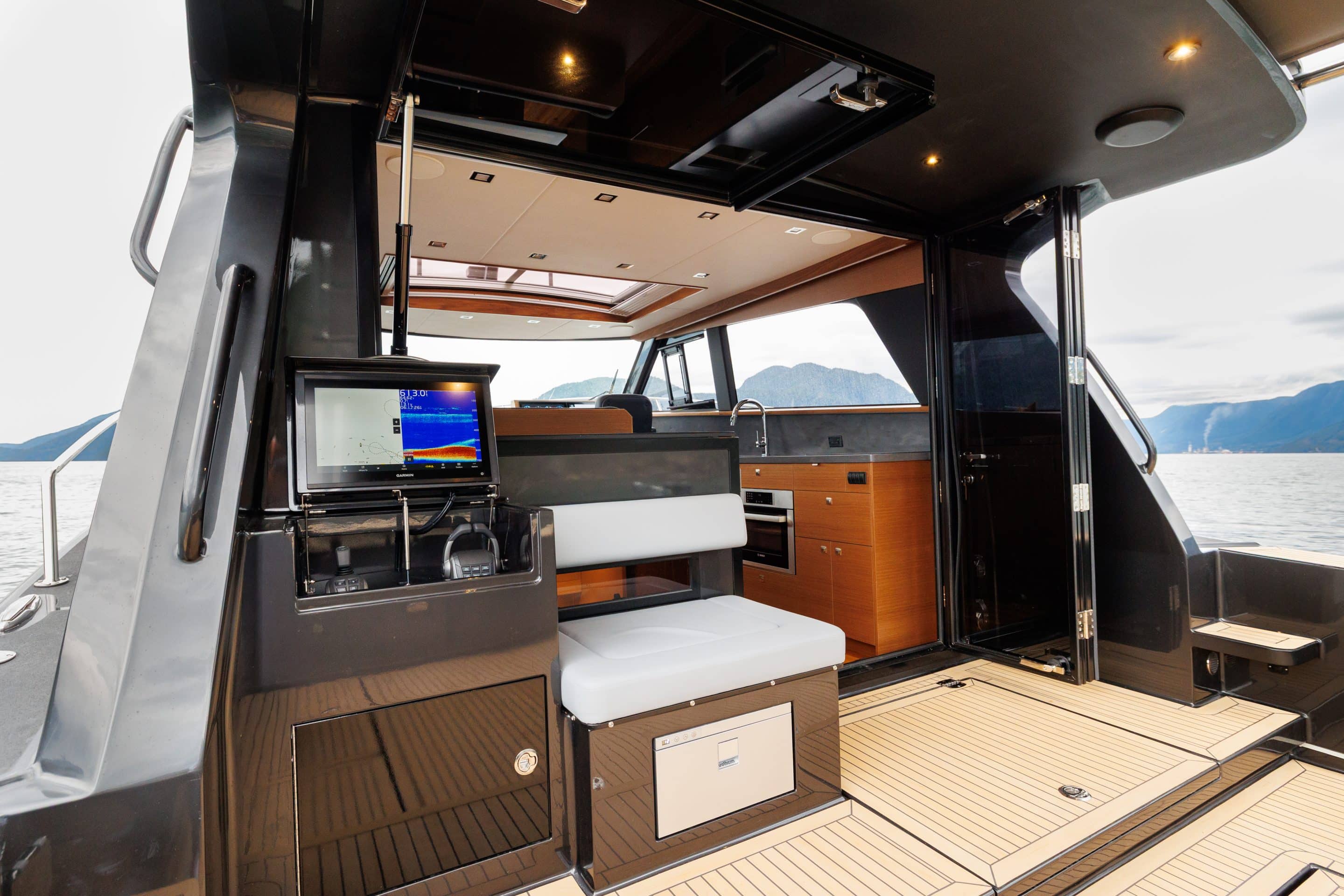

AFT COCKPIT
- Hardtop extends over cockpit to rear transom edge with (8) Imtra LED down lights (recessed) with dimmer function
- (2) Volvo Joystick Control Stations (Starboard and Port side) provide docking convenience and ease
- The aft cockpit deck is self-bailing with stainless steel deck scupper drains
- Port and starboard steps from cockpit deck up to side decks with teak treads
- U shaped settee and teak table with seating for 4
- Deck engine hatch(es) on electric/hydraulic lift cylinders provide convenient and easy access to engine compartment
- Teak decks surfaces on aft deck and swim platform
- NEW Garmin monitoring video camera – new 2023
- Stainless steel stair well (4” single center pipe) with floating teak stair treads and handrails to flybridge
- Rainier welded canvas enclosure with clear Rainer panels and four opening doors
- Ceiling clips for the four rear canvas panels which opens up the cockpit
UPPER DECK
- Recessed cabin top for sunroof
- Deck drains
- Non-slip deck coatings
- Radar mast, forward mounted
- Steelhead WD800 davit crane
- Garmin Fantom 24x radar
- ACR spotlight
- Morad antenna
- Tender, AB 9 UL with Mercury 9.9hp outboard

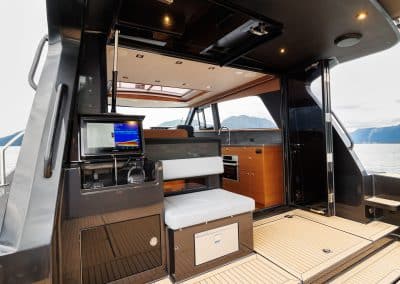

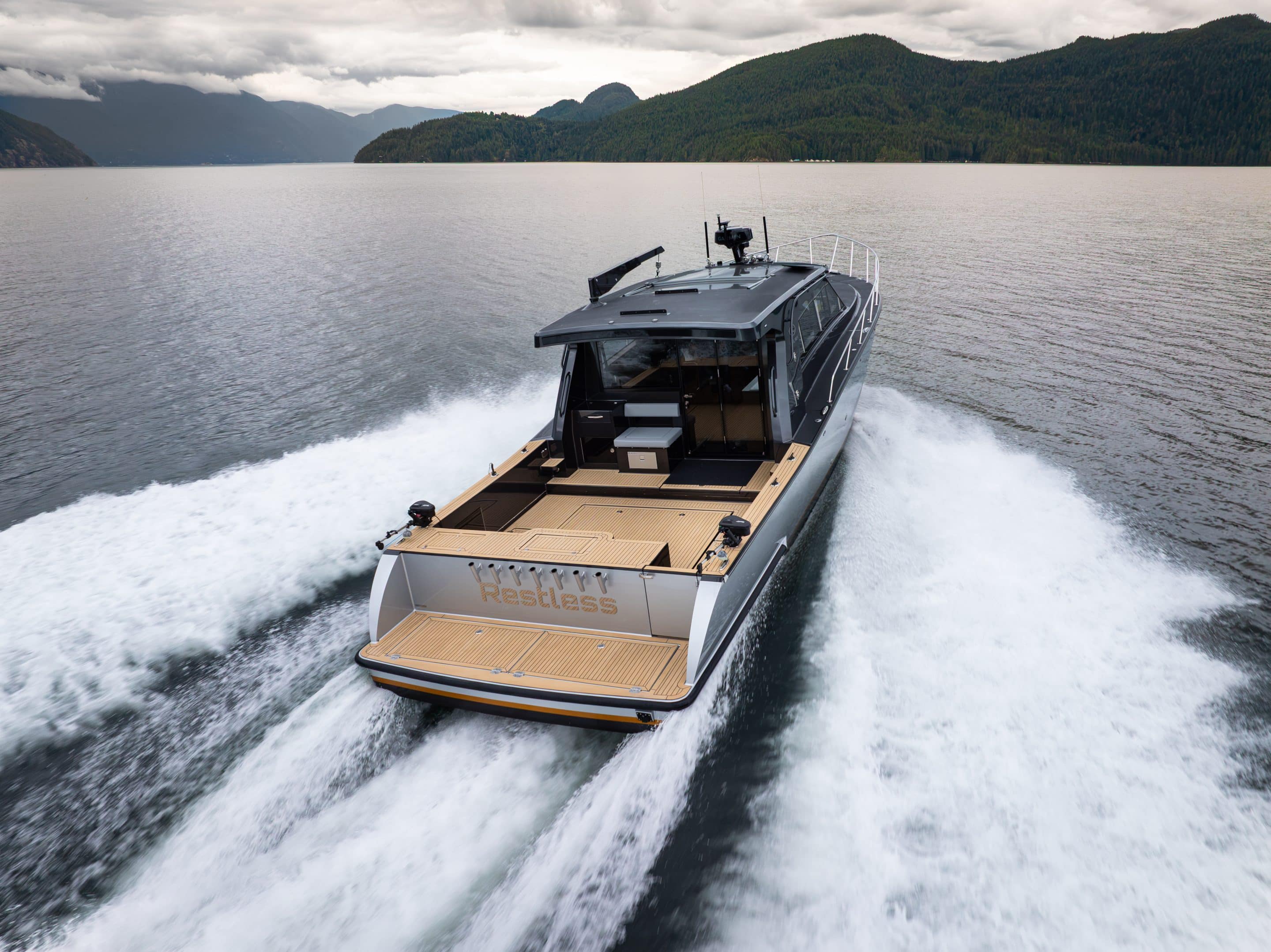

AFT COCKPIT

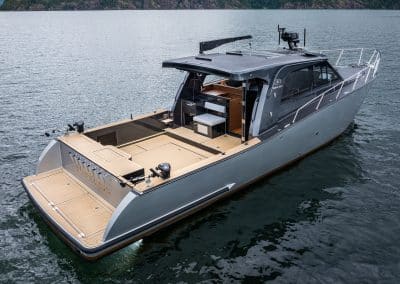

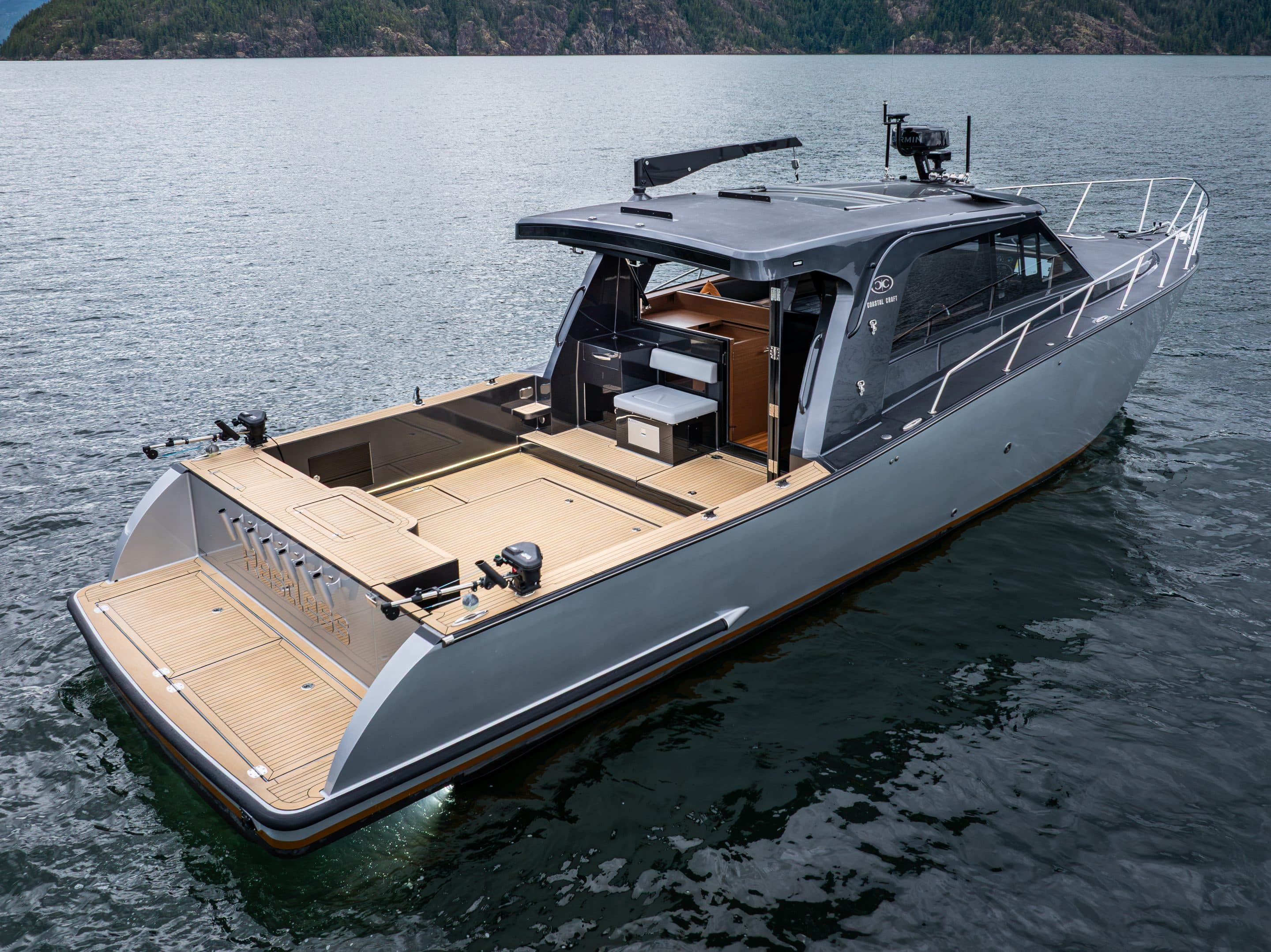

- 144 square foot cockpit
- Mezzanine deck with rod storage below
- Port side single bench seat with sliding drawer
- (2) in-deck insulated fish boxes with drains and discharge sump
- 48″ overhang on hardtop
- (6) power points
- (6) Burnewiin GM650 deck mounts in cockpit
- (4) Burnewiin mounts on transom staple rails
- 3 step boarding ladder
- (4) hardtop downlights in cockpit ceiling
- Toe kick courtesy lighting
- Flexi-Teak synthetic cockpit decking
- Flexi-Teak cover boards
- Transom door leading out onto swim platform
- Full width swim platform, 42″ deep
- Built-in fish boxes integrated under swim platform
- Large fish cleaning tray on (2) Burnewiin mounts on staple rails
- Flush mount Kenyon grill
- Swim grid stainless staples
- Isotherm fridge/freezer drawer
- Cockpit shower
- (2) side tackle cupboards
- (4) transom tackle drawers
- (7) transom rod holders
- Livewell
- (1) cupboard under aft helm
AFT COCKPIT
- Volvo Penta Glass Cockpit 9000 Series display by Garmin
- Volvo joystick
- Volvo engine start/stop panel
- Volvo dual engine controls
- Integrated autopilot and trim tab control

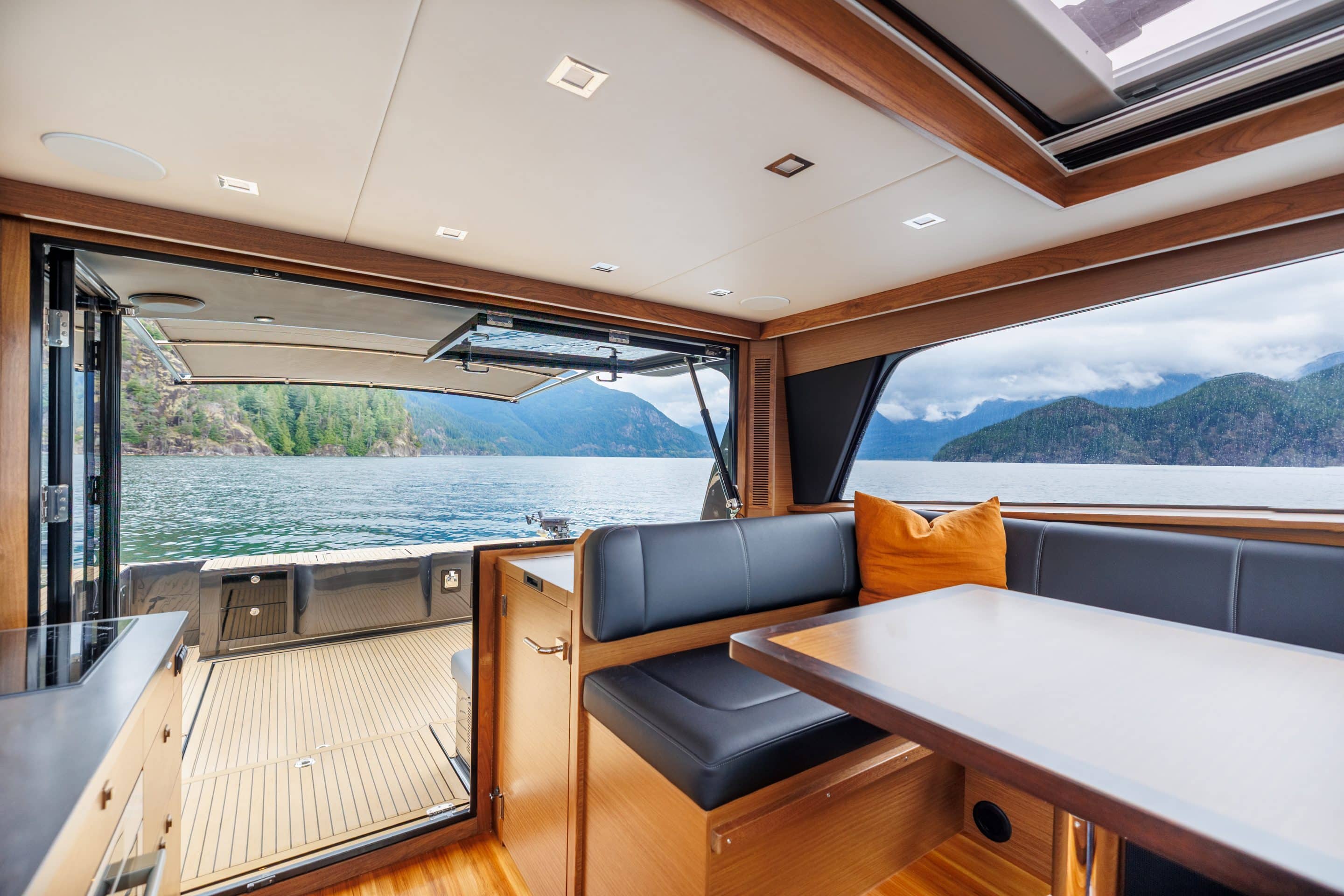

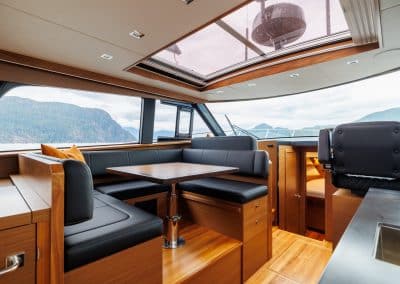

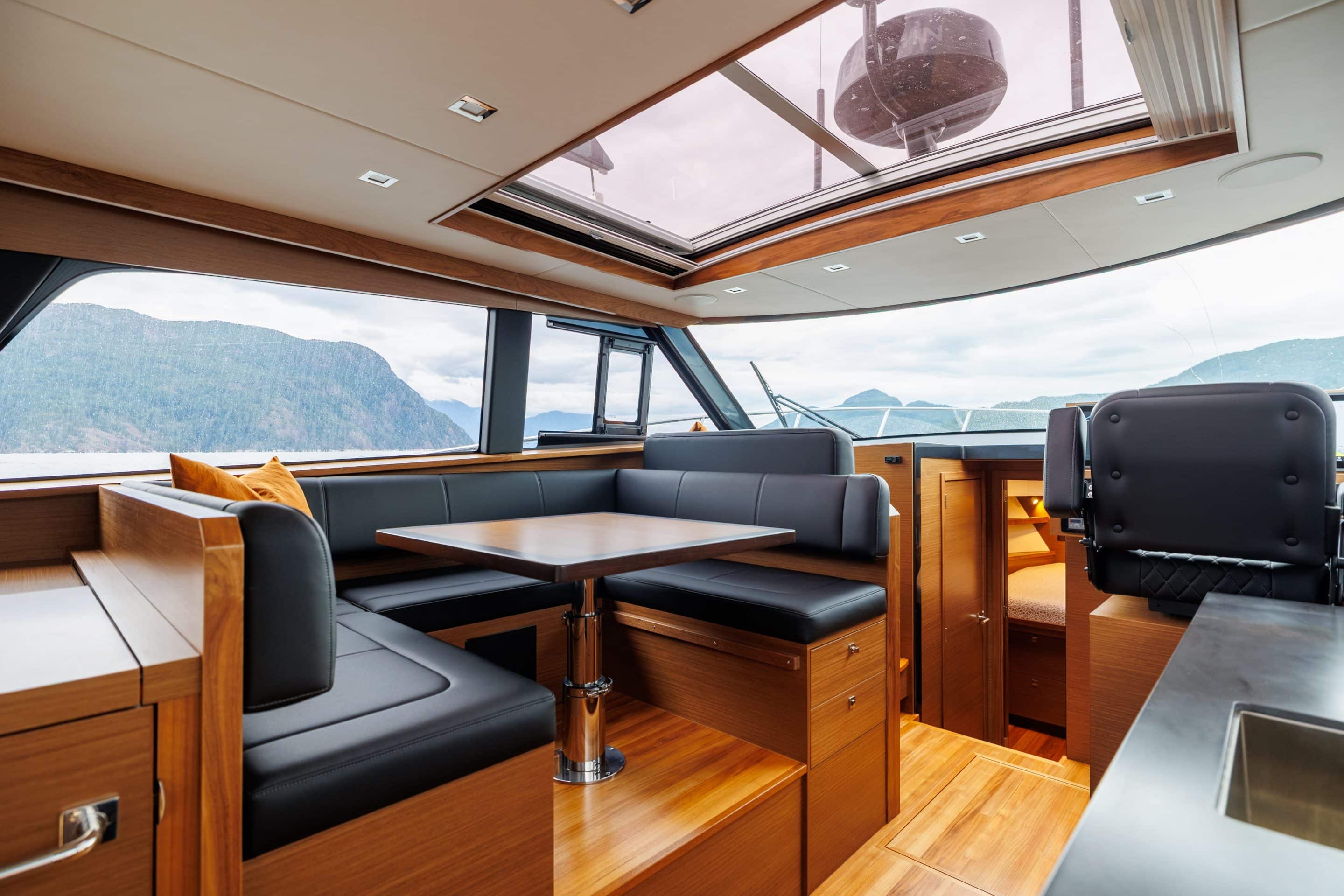

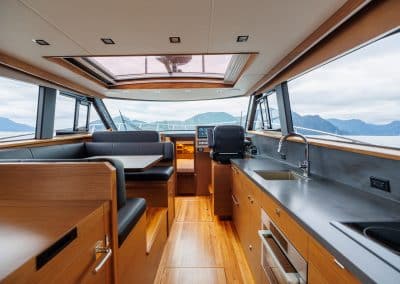

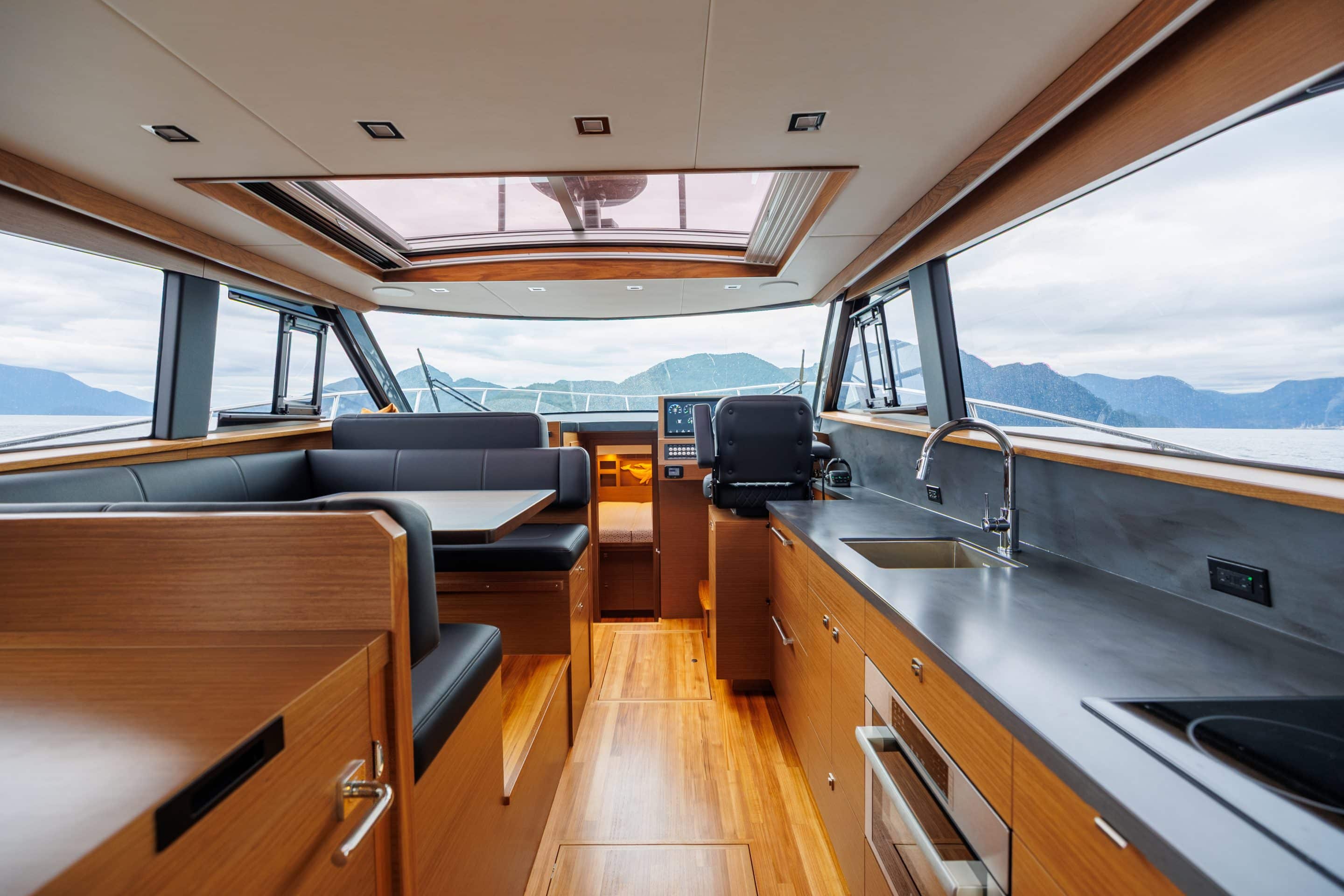

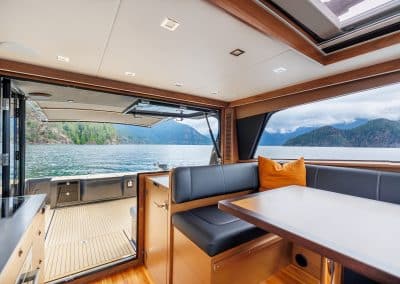

SALON
- Black walnut joinery by Brookside
- Marine Lite plywood used with all veneer panels
- Teak plank flooring
- Black walnut window frames
- Window blinds
- Opening rear window
- Majilite ceiling panels with 1/8″ foam backer and tricote
- Helm seat with electric slider
- Port side double-wide passenger seating, forward
- Port side U-shaped settee, seating for 6
- Interior upholstery fabric, Volar Pitch Black 630-6073 Ultra Fabric

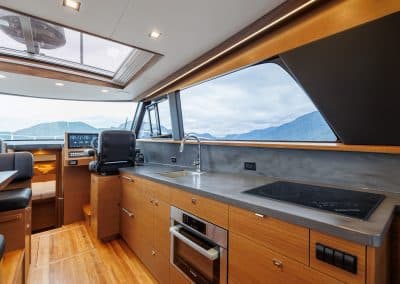

- Starboard galley
- Backsplash accent lighting
- Interior lighting, 3 zones with 4 lights per zone, dimmable
- Machine space below salon floor

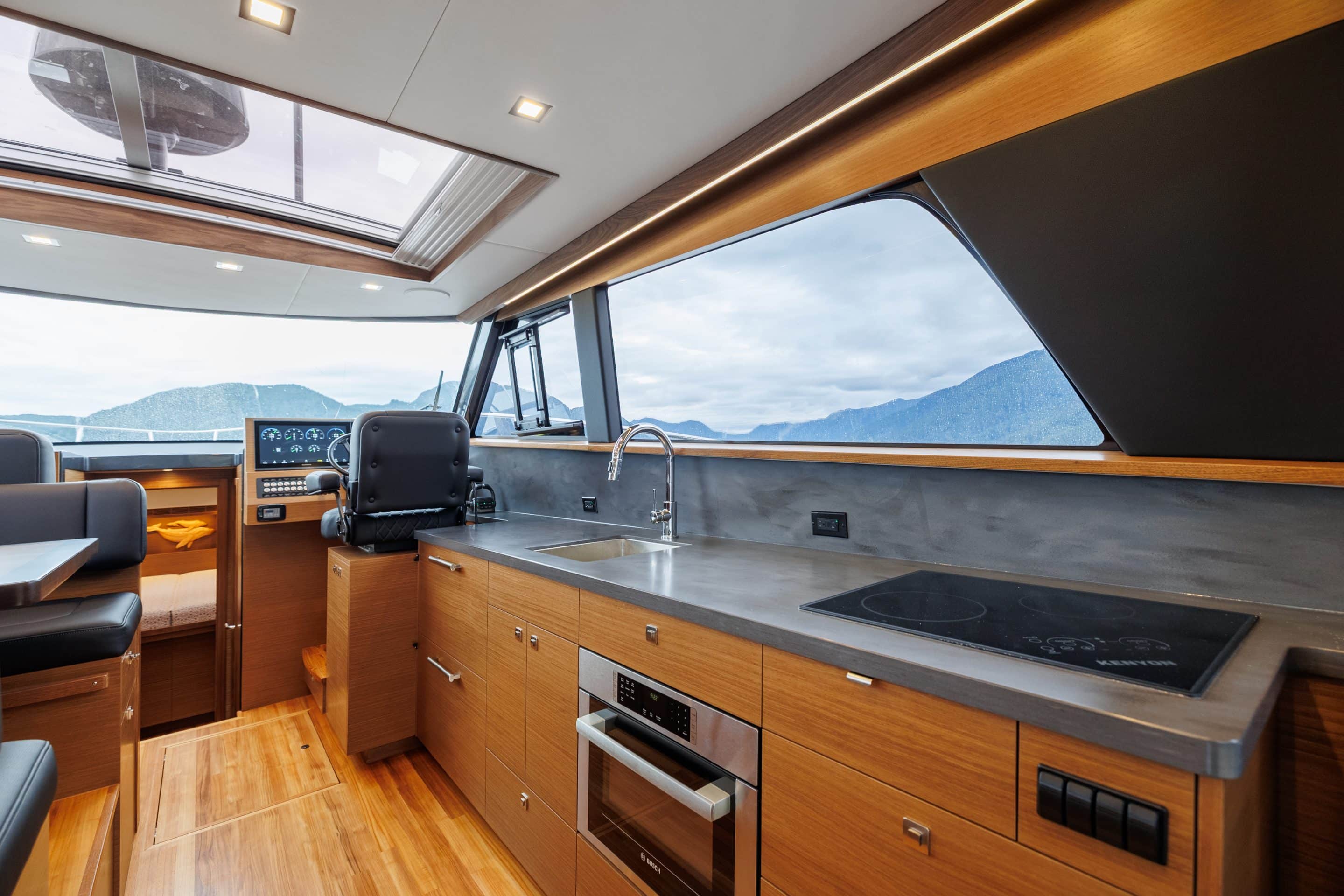

GALLEY
- (4) galley drawers and (2) cupboards
- (5) settee drawers adjacent to galley
- Brushed satin nickel flush latches, locking
- Avonite/Corian countertops and backsplash
- Sub-Zero 2 drawer fridge with ice maker
- Freezer below deck
- 2 burner Kenyon cooktop, 240V
- 24″ Bosch convection microwave
- Stainless steel single undermount galley sink
- Faucet, single lever with pull-down sprayer
- (2) AC outlets, backsplash mounted
AUDIO
- Fusion MS-RA770 stereo
- FM and Bluetooth
- Fusion 10″ subwoofer under settee
- Fusion 4 channel amplifier, 1400W
- Fusion 5 channel amplifier, 1600W
- (4) JL interior speakers
- (2) Garmin Fusion Signature 8.8″ speakers in cockpit hardtop valance and galley

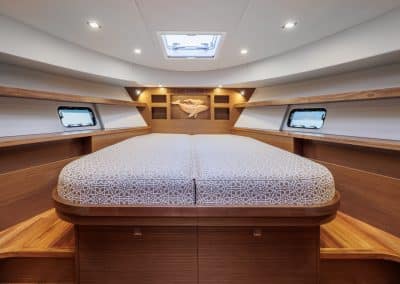

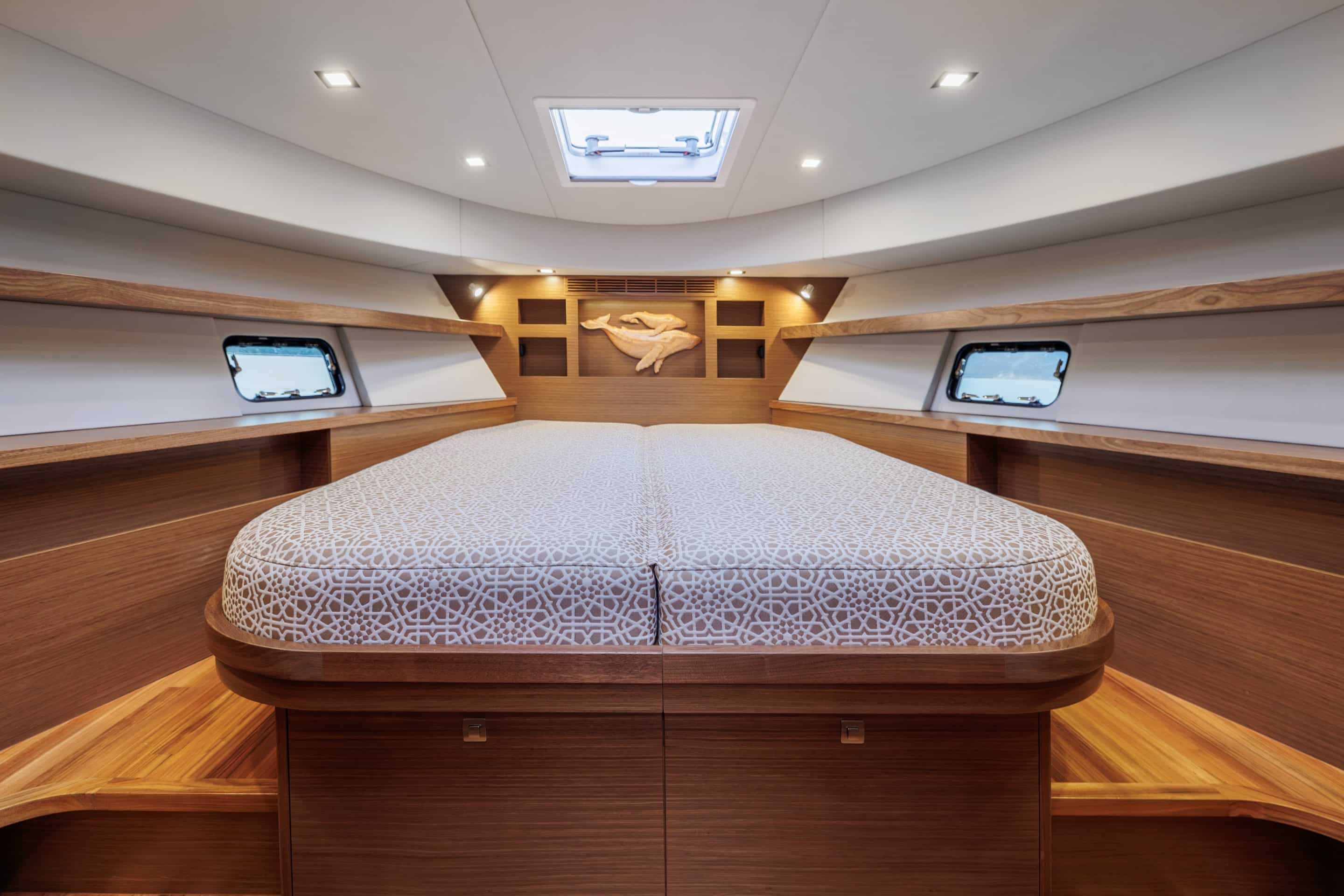

OWNER'S STATEROOM (FORWARD)
- Teak plank flooring
- Island queen berth, 66″ x 78″, with 6″ mattress
- Step platforms on either side of berth for easy access
- Port hanging locker with shelves
- Starboard full height hanging locker with shelves
- (4) drawers under foot of berth
- Upper side shelves
- (2) 20″ deck hatches with Oceanair screen and shade
- Majilite ceiling panels with 1/8″ foam backer and tricote
- (6) ceiling lights on dimmers
- (4) art lights on dimmers
- (2) reading lights
- Berth side steps and companionway LED courtesy lighting on dimmer
- (2) Pompanette stainless opening port lights in sidewalls

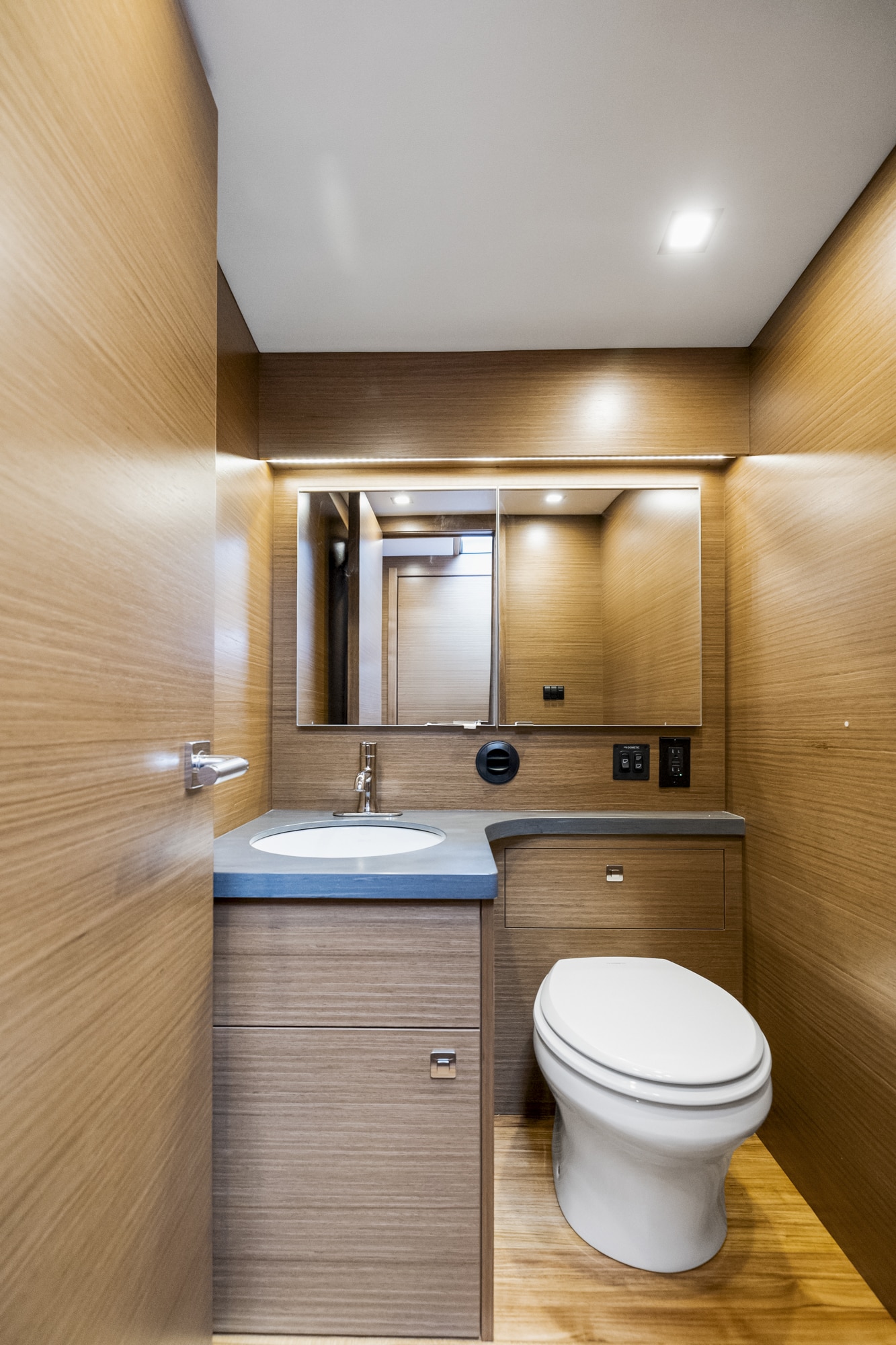

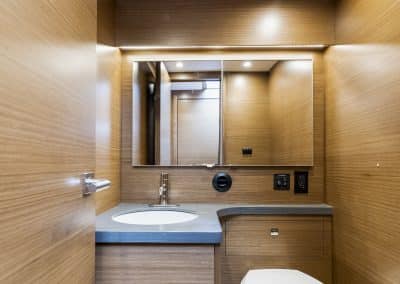

FORWARD HEAD
- Vanity cabinets behind mirror
- (2) cupboards
- Avonite/Corian countertop and backsplash
- Kohler white undermount round vanity sink
- Vanity faucet, chrome
- Low profile fresh water flush toilet
- (1) GFCI AC outlet
- (2) towel hooks
- (3) ceiling lights on dimmer
- Vanity LED lighting on dimmer
FORWARD SHOWER
- Watertight shower stall with seat
- Non-slip coatings on floor
- Avonite wet wall shower panels
- Wall mounted showerhead
- Towel dry locker with faucet
- Towel hooks
- (3) ceiling lights on dimmer
- Strip LED lighting on dimmer

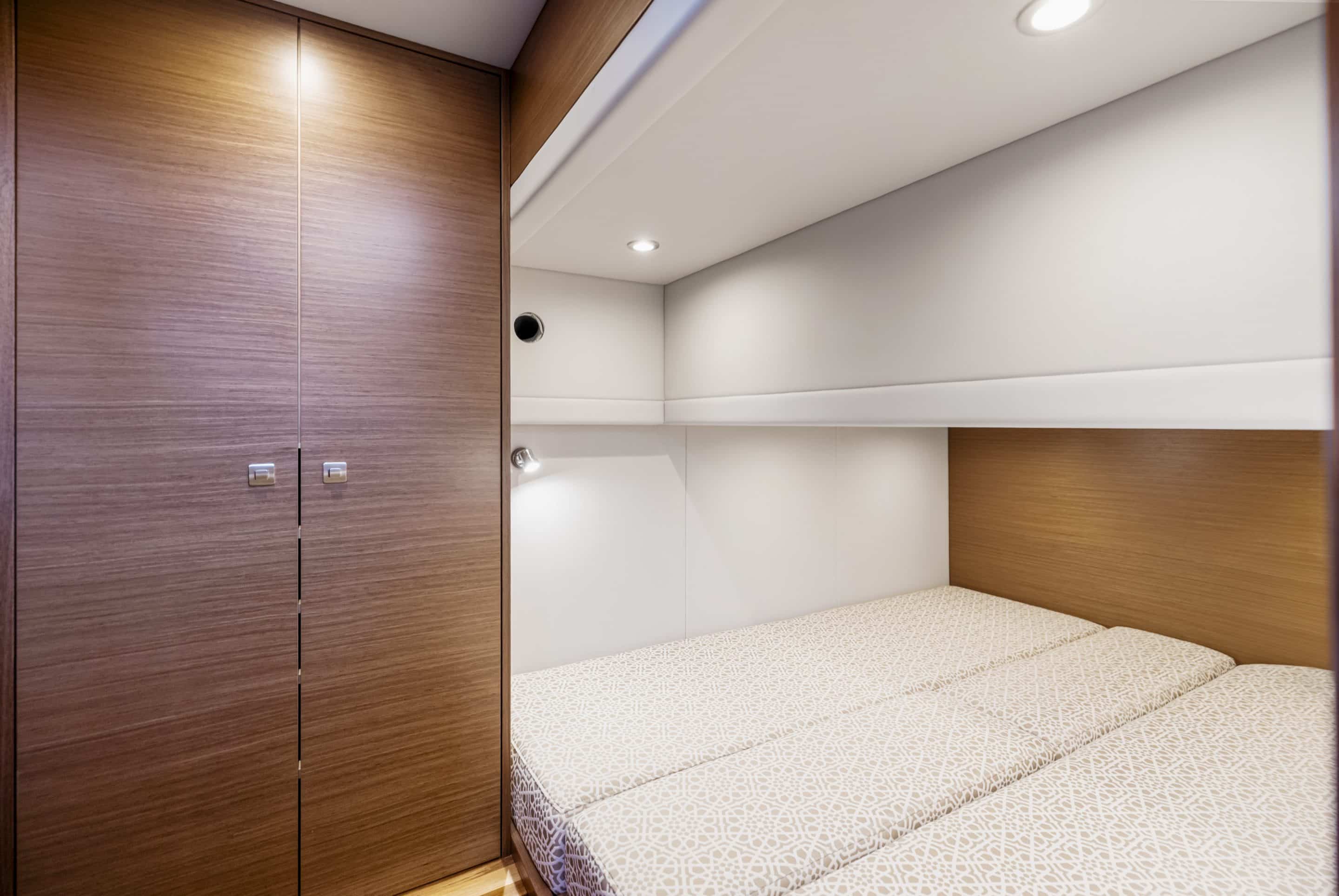

GUEST STATEROOM (AFT)
- Teak plank flooring
- Twin single bunks, cushion to convert to queen
- Hanging locker with storage
- Stateroom finished in engineered black walnut
- Majilite ceiling panels with 1/8″ foam backer and tricote
- (7) ceiling lights on dimmer
- (2) reading lights
- (2) courtesy lights on dimmer
NAVIGATION ELECTRONICS
- (3) Volvo Penta Glass Cockpit 9000 Series displays by Garmin
- Garmin 24XD GPS sensor
- Garmin Fantom 24x radar, closed array
- Garmin GSD 25 sounder module
- (1) Garmin VHF 215 radio with Morad antenna
- Airmar thru hull transducer, 200kHz
- Airmar thru hull transducer, 50kHz
- Volvo autopilot with joystick steering and driving
- ACR spotlight
MACHINERY & SYSTEMS
- Phasor 8kW generator with double lined sound shield
- Centek waterlift and gas separator mufflers
- Hurricane by ITR diesel fired hot water system
- (2) Racor dual fuel/water filters, engines
- (1) Racor fuel/water filter, generator
- (2) Z4A hull zinc anodes
- Engine room insulation
- Air intake and ambient air venting and ducting
- Humphree trim system, 750mm interceptor, with Active Ride
- Air horn, dual trumpet
- Imtra windshield wiper and washer system
- (4) Rule 2000 GPH bilge pumps
- (1) Whale manual bilge pump
- Fireboy fire suppression, engine and aft mechanical spaces
- Cockpit hose reel with hawse pipe, domestic water

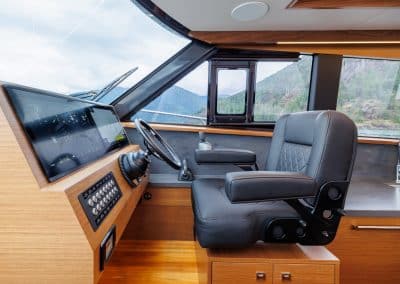

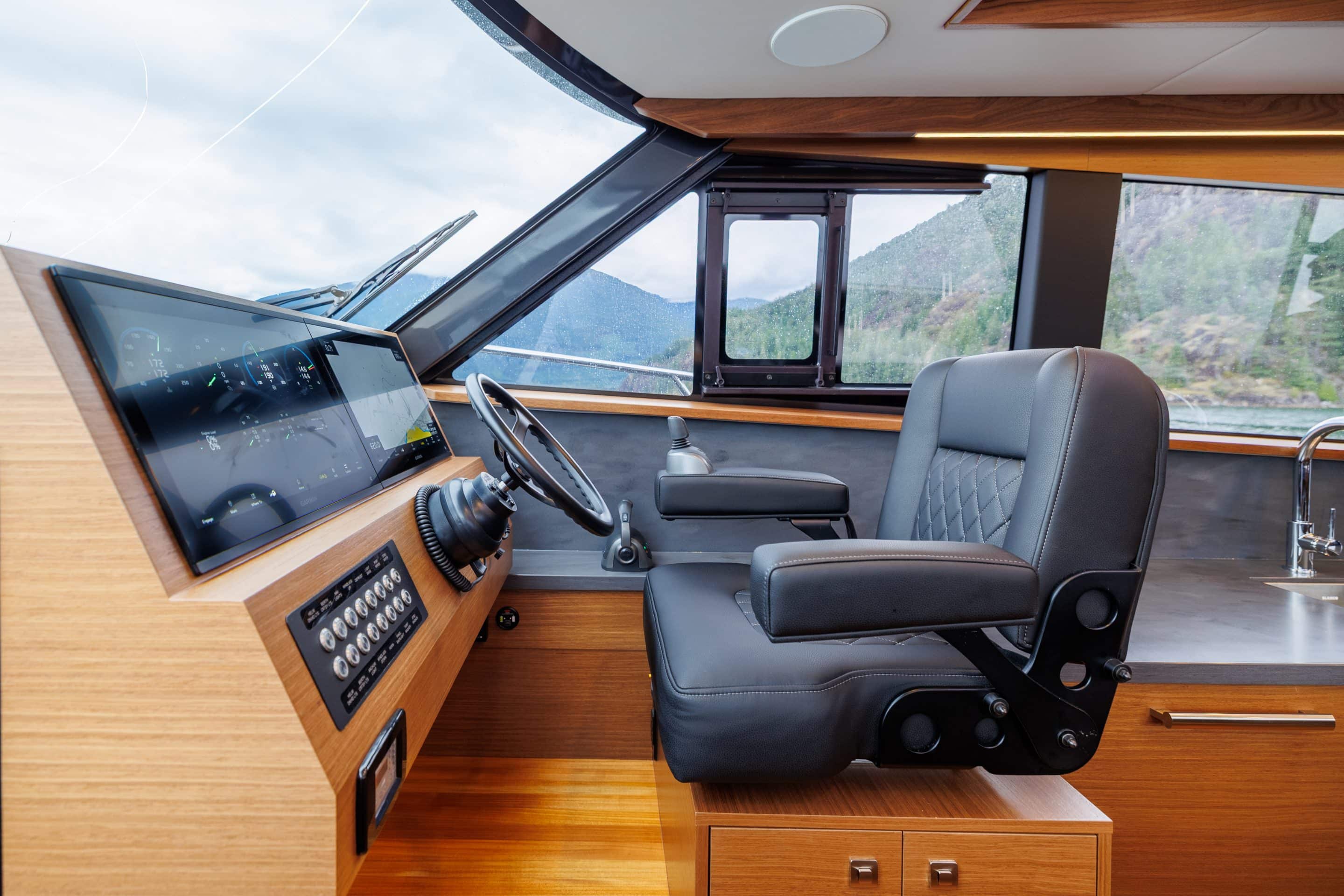

MAIN HELM CONSOLE
- Volvo tilt steering with Edson steering wheel
- Volvo joystick control on helm seat armrest
- Volvo dual engine controls
- (2) Volvo Penta Glass Cockpit 9000 Series displays by Garmin
- Garmin VHF 215, dash mount
- Garmin GHS 11 VHF remote (VHF 315)
- Volvo autopilot control
- New Wire Marine 16 LED button control panel
- Coastal Craft traditional helm seat with matching upholstery
CLIMATE CONTROL
- Defrost system, engine heat, with port and starboard dash vents
- Espar D6L diesel heater, main and aft cabin
- Webasto 25,000 BTU reverse air conditioner, salon
- Webasto 10,000 BTU reverse air conditioner, forward
- Hurricane by ITR domestic hot water heater, on demand, diesel fired
TANKAGE
- 600 USG fuel tank, aluminum, with sender
- 35 USG auxiliary fuel tank for generator and heater
- 90 USG domestic water tank, stainless, with sender
- 28 USG black water waste tank, plastic, with sender
- 4 gallon discharge sump tank, grey water
- 4 gallon discharge sump tank, A/C condensate
- 4 gallon discharge sump tank, fish bins
ELECTRICAL EQUIPMENT
- 12V DC house and engine
- (4) 150Ah lithium-ion batteries, 12V at 600Ah total house bank
- (2) AGM Group 31 12V engine start batteries
- Victron Quattro 5kW inverter/charger, 200A charger
- Victron Skylla IP65 12V 70 amp battery charger
- Victron auto transformer
- Victron isolation transformer
- Sterling Power 12V to 12V battery charger
- Promariner 40A start bank charger
- Dual alternator charging system, 2nd alternator per engine wired direct to house
- Wakespeed WS500 Pro external alternator regulators and monitoring with Balmar 250A alternators
- 240V/50A shore power with Glendinning cable reel and 50′ loose cord
- 120V/30A SmartPlug shore power, 50′ loose cord
- 240V/50A NautiBoost isolation boosting transformer
- Battery coupling system
- Navigation lights, LED
- High water bilge alarms
- High temperature alarms in engine room
- Domestic water pump
- BCM flush ceiling lights on dimmers
- LED lights in engine and mechanical compartments
- (3) LED underwater transom lights, multi-colour
- Cockpit courtesy lighting
- Cockpit cabin side lights
- Transom accent lights
MISCELLANEOUS
- Six boat fenders with socks and lines
- Six mooring lines, 5/8″ x 20′
- Life ring and throwing line
- Owners manual
- Carbon monoxide and smoke detectors
- First aid kit
- Tender roof mounts and tie downs
- Fender storage in anchor locker
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice and is subject to E&OE.
